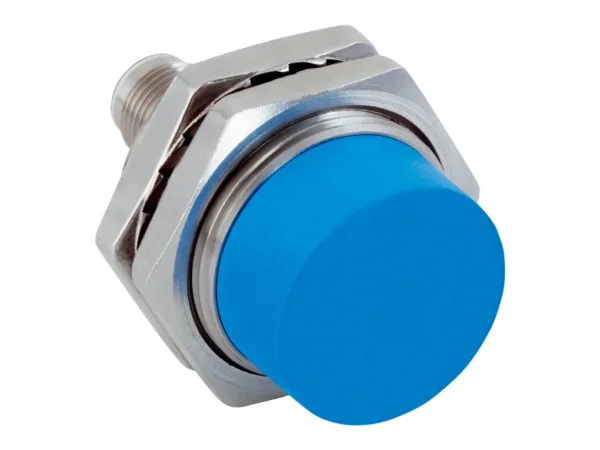

Name: SICK 1072855 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1072855
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Housing	Short-body
Thread size	M30 x 1.5
Diameter	Ø 30 mm
Sensing range S_n	20 mm
Safe sensing range S_a	16.2 mm
Installation type	Non-flush
Switching frequency	500 Hz
Connection type	Male connector M12, 4-pin
Switching output	NPN
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP68 IP69K
Special features	Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance
Special applications	Zones with coolants and lubricants, Mobile machines, Difficult application conditions
Items supplied	Mounting nut, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Hysteresis	3 % … 20 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 200 mA
No load current	≤ 10 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g
Ambient operating temperature	–40 °C … +100 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	50 mm
Thread length	20 mm
Tightening torque, max.	Typ. 100 Nm Typ. 100 Nm
Protection class	III
UL File No.	E181493

Safety-related parameters

MTTF_D	1,971 years
DC_avg	0 %

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.78
Aluminum (Al)	Approx. 0.44
Copper (Cu)	Approx. 0.36
Brass (Br)	Approx. 0.46

Installation note

Remark	Associated graphic see “Installation”
A	20 mm
B	62 mm
C	30 mm
D	60 mm
E	20 mm
F	160 mm
