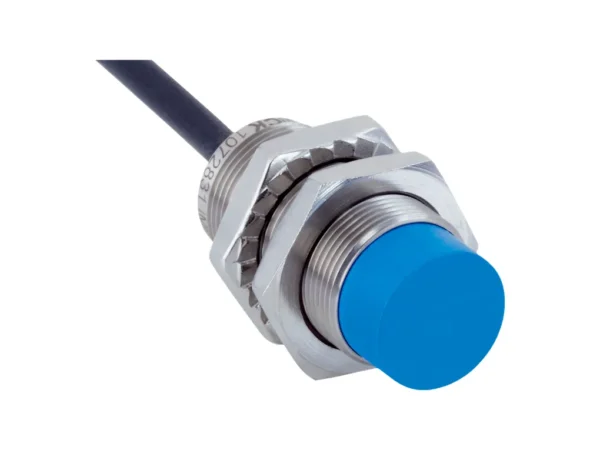

Home Endüktif Sensörler IMB18-12NNSVU2K – 1072833 🔍 IMB18-12NNSVU2K – 1072833 ✉ Teklif Al Teklif Al Stok kodu: 1072833 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Safe sensing range Sa 9.72 mm Installation type Non-flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Cable material PUR Conductor size 0.34 mm² Cable diameter Ø 4.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 40 mm Thread length 28 mm Tightening torque, max. Typ. 60 Nm Typ. 90 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,971 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.37 Brass (Br) Approx. 0.43 Installation note Remark Associated graphic see “Installation” A 18 mm B 45 mm C 18 mm D 36 mm E 12 mm F 96 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Top – 802PR-LAAJ3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Safe sensing range Sa 9.72 mm Installation type Non-flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Cable material PUR Conductor size 0.34 mm² Cable diameter Ø 4.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 40 mm Thread length 28 mm Tightening torque, max. Typ. 60 Nm Typ. 90 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,971 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.7 Aluminum (Al) Approx. 0.43 Copper (Cu) Approx. 0.37 Brass (Br) Approx. 0.43 Installation note Remark Associated graphic see “Installation” A 18 mm B 45 mm C 18 mm D 36 mm E 12 mm F 96 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
