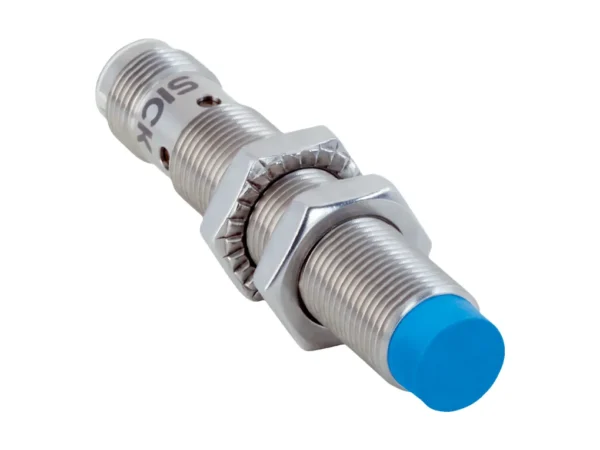

Home Endüktif Sensörler IMB12-08NPPVC0S – 1074360 🔍 IMB12-08NPPVC0S – 1074360 ✉ Teklif Al Teklif Al Stok kodu: 1074360 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, IO-Link, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 65 mm Thread length 43 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 2,016 years DCavg 0 % Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.67 Aluminum (Al) Approx. 0.42 Copper (Cu) Approx. 0.35 Brass (Br) Approx. 0.42 Installation note Remark Associated graphic see “Installation” A 12 mm B 24 mm C 12 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LAAH1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Electrical wiring DC 4-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, IO-Link, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 65 mm Thread length 43 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 2,016 years DCavg 0 % Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.67 Aluminum (Al) Approx. 0.42 Copper (Cu) Approx. 0.35 Brass (Br) Approx. 0.42 Installation note Remark Associated graphic see “Installation” A 12 mm B 24 mm C 12 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
