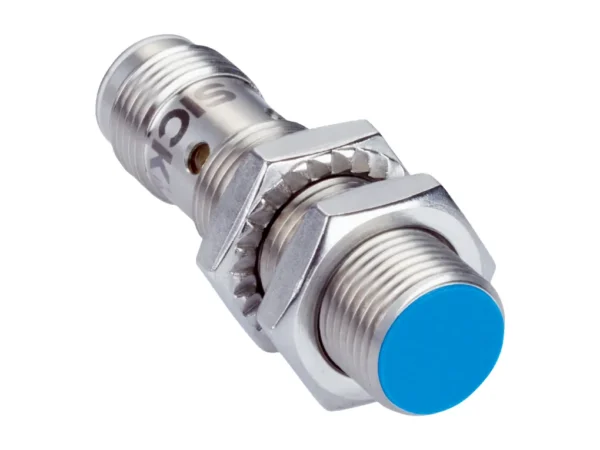

Home Endüktif Sensörler IMB12-04BNOVC0K – 1072749 🔍 IMB12-04BNOVC0K – 1072749 ✉ Teklif Al Teklif Al Stok kodu: 1072749 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 45 mm Thread length 28 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,971 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.35 Copper (Cu) Approx. 0.24 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” B 12 mm C 12 mm D 12 mm F 32 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, DC, 2 mm Sensing Distance, Normally Open Sourcing, Micro Quick Disconnect – 871Z-DW2NP12-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 18 mm Barrel Diameter, AC/DC, 8 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B8N18-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 45 mm Thread length 28 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,971 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.35 Copper (Cu) Approx. 0.24 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” B 12 mm C 12 mm D 12 mm F 32 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
