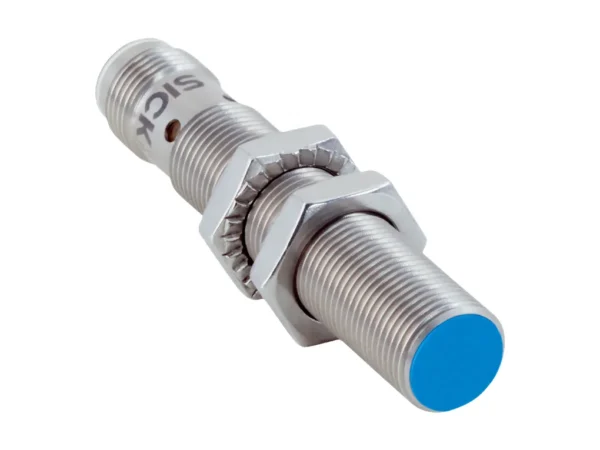

Home Endüktif Sensörler IMB12-04BDSVC0S – 1074364 🔍 IMB12-04BDSVC0S – 1074364 ✉ Teklif Al Teklif Al Stok kodu: 1074364 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Output function NO Electrical wiring DC 2-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 4 V ≤ 4.5 V Time delay before availability ≤ 100 ms Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 100 mA Off-state current Typ. 0.8 mA (≤ 1.2 mA at Ub max and 100 ° C) Minimum load current ≥ 3 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse ≤ 5 ms Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 65 mm Thread length 48 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,287 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.35 Copper (Cu) Approx. 0.24 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” B 12 mm C 12 mm D 12 mm F 32 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-MH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Output function NO Electrical wiring DC 2-wire Enclosure rating IP68 IP69K Special features Resistant against coolant lubricants, Visual adjustment indicator, Temperature resistance Special applications Zones with coolants and lubricants, Mobile machines, Difficult application conditions Items supplied Mounting nut, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 4 V ≤ 4.5 V Time delay before availability ≤ 100 ms Hysteresis 3 % … 20 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 100 mA Off-state current Typ. 0.8 mA (≤ 1.2 mA at Ub max and 100 ° C) Minimum load current ≥ 3 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse ≤ 5 ms Shock and vibration resistance 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz … 55 Hz / 1 mm; 55 Hz … 500 Hz / 60 g Ambient operating temperature –40 °C … +100 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 65 mm Thread length 48 mm Tightening torque, max. Typ. 20 Nm Typ. 32 Nm Protection class III UL File No. E181493 Safety-related parameters MTTFD 1,287 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.35 Copper (Cu) Approx. 0.24 Brass (Br) Approx. 0.38 Installation note Remark Associated graphic see “Installation” B 12 mm C 12 mm D 12 mm F 32 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
