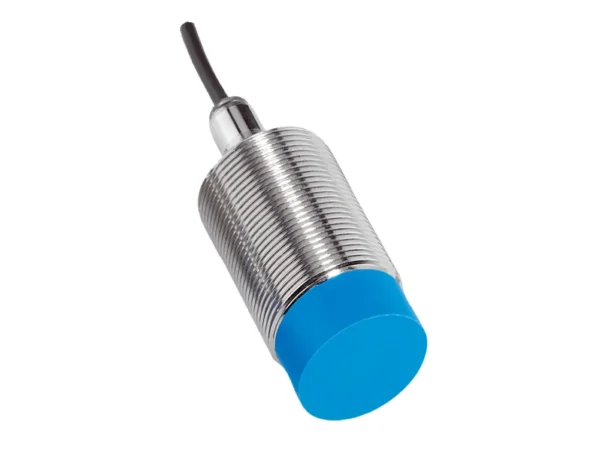

Home Endüktif Sensörler IMA30-15NE1ZW2S – 1107309 🔍 IMA30-15NE1ZW2S – 1107309 ✉ Teklif Al Teklif Al Stok kodu: 1107309 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 15 mm Installation type Non-flush Connection type Cable, 4-wire, 2 m Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 7,5 mm: 6,2 V +/-0,6 V (23 °C) s = 15 mm: 10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 15 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 70 mm Thread length 41 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” A 30 mm B 60 mm C 30 mm D 45 mm E 30 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LAAH1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 15 mm Installation type Non-flush Connection type Cable, 4-wire, 2 m Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 7,5 mm: 6,2 V +/-0,6 V (23 °C) s = 15 mm: 10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 15 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 70 mm Thread length 41 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” A 30 mm B 60 mm C 30 mm D 45 mm E 30 mm F 120 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
