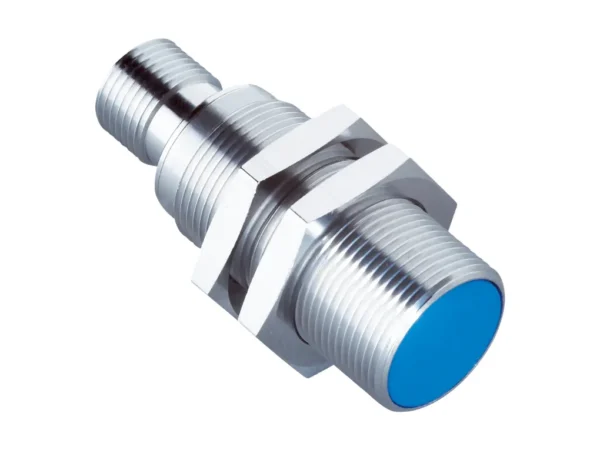

Home Endüktif Sensörler IMA18-10BE1ZC0K – 6041793 🔍 IMA18-10BE1ZC0K – 6041793 ✉ Teklif Al Teklif Al Stok kodu: 6041793 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 10 mm Installation type Quasi-flush Connection type Male connector M12, 4-pin Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.02 mm Resolution ≤ 2 µm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Toothed washer, stainless steel (2 x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 50 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Load current ± 10 mA Max. load resistance ≤ 400 Ω Ub = 15 V ≤ 1,000 Ω Ub = 30 V Output voltage QA1 s = 0 mm: 0 V/-0 +0,4 V (23 °C) s = 5 mm: +5,2 V/ +-0,4 V (23 °C) s = 10 mm: +10 V/ +-0,4 V (23 °C) Output current QA2 s = 0 mm: 4 mA/ +-0,8 mA (23 °C) s = 10 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, PTB Housing length 48.5 mm Thread length 32 mm Safety-related parameters MTTFD 88 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.6 Aluminum (Al) Approx. 0.18 Copper (Cu) Approx. 0.15 Brass (Br) Approx. 0.28 Installation note Remark Associated graphic see “Installation” A 10 mm B 26 mm C 18 mm D 30 mm E 4 mm F 100 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Proximity Sensor, 3-Wire DC Weld Field Immune, 18mm Diameter, Tubular: Teflon Coated Brass, 5mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Micro QD (DC) – 871Z-DW5NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Side – 802PR-LAAA3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 10 mm Installation type Quasi-flush Connection type Male connector M12, 4-pin Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.02 mm Resolution ≤ 2 µm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Toothed washer, stainless steel (2 x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 50 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Load current ± 10 mA Max. load resistance ≤ 400 Ω Ub = 15 V ≤ 1,000 Ω Ub = 30 V Output voltage QA1 s = 0 mm: 0 V/-0 +0,4 V (23 °C) s = 5 mm: +5,2 V/ +-0,4 V (23 °C) s = 10 mm: +10 V/ +-0,4 V (23 °C) Output current QA2 s = 0 mm: 4 mA/ +-0,8 mA (23 °C) s = 10 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, PTB Housing length 48.5 mm Thread length 32 mm Safety-related parameters MTTFD 88 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.6 Aluminum (Al) Approx. 0.18 Copper (Cu) Approx. 0.15 Brass (Br) Approx. 0.28 Installation note Remark Associated graphic see “Installation” A 10 mm B 26 mm C 18 mm D 30 mm E 4 mm F 100 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
