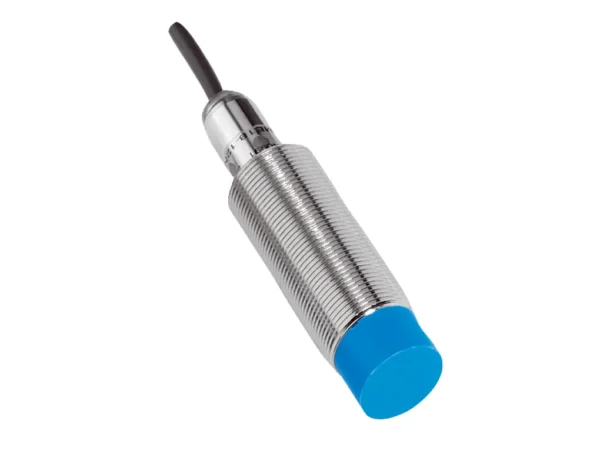

Home Endüktif Sensörler IMA18-08NE1ZW2S – 1105020 🔍 IMA18-08NE1ZW2S – 1105020 ✉ Teklif Al Teklif Al Stok kodu: 1105020 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 8 mm Installation type Non-flush Connection type Cable, 4-wire, 2 m Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 4 mm: 5,6 V +/-0,6 V (23 °C) s = 8 mm: 10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 8 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 67 mm Thread length 42 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Metal Face, 18 mm Barrel Diameter, AC/DC, 8 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B8N18-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Prox Sensor, Nickel Brass Inductive Sensor, 8 mm Barrel Diameter, DC Standard, 2 mm Sensing Distance, Normally Open Sourcing, Standard Barrel, 4 Pin DC Micro QD, 5-30V DC – 872C-D2NP8-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Proximity Sensor, 3-Wire DC Weld Field Immune, 18mm Diameter, Tubular: Teflon Coated Brass, 5mm Sensing Distance, Shielded, N.O., Source (PNP) Output, Micro QD (DC) – 871Z-DW5NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 8 mm Installation type Non-flush Connection type Cable, 4-wire, 2 m Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 4 mm: 5,6 V +/-0,6 V (23 °C) s = 8 mm: 10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 8 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 500 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 67 mm Thread length 42 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
