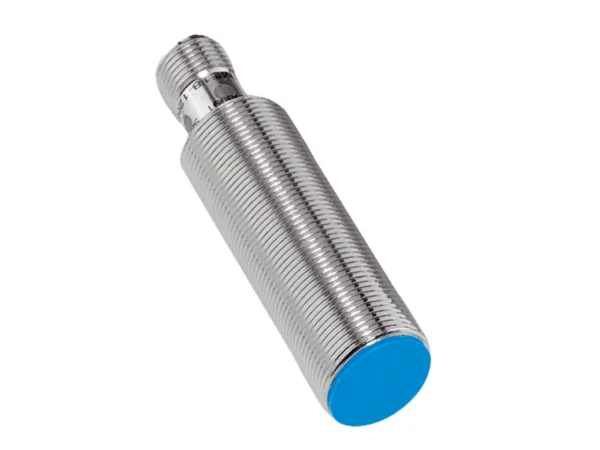

Home Endüktif Sensörler IMA18-05BE1ZC0S – 1107332 🔍 IMA18-05BE1ZC0S – 1107332 ✉ Teklif Al Teklif Al Stok kodu: 1107332 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 5 mm Installation type Flush Connection type Male connector M12, 4-pin Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 2,5 mm: +5 V +/-0,6 V (23 °C) s = 5 mm: +10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 5 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 1,000 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 69 mm Thread length 52 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” B 18 mm C 18 mm D 15 mm F 40 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 12 mm Barrel Inductive Prox Sensor – 872C-N8NP12-E5ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 0 mm … 5 mm Installation type Flush Connection type Male connector M12, 4-pin Output function Analog Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.1 mm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 30 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Max. load resistance on QA1 ≥ 2 kΩ Max. load resistance on QA2 400 Ω Ub = 15 V Output voltage QA1 s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 2,5 mm: +5 V +/-0,6 V (23 °C) s = 5 mm: +10 V +/-0,6 V (23 °C) Output current QA2 s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 5 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Output current 4 mA … 20 mA Bandwidth 1,000 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic Housing length 69 mm Thread length 52 mm Safety-related parameters MTTFD 1,149 years DCavg 0 % TM (mission time) 20 years Installation note Remark Associated graphic see “Installation” B 18 mm C 18 mm D 15 mm F 40 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
