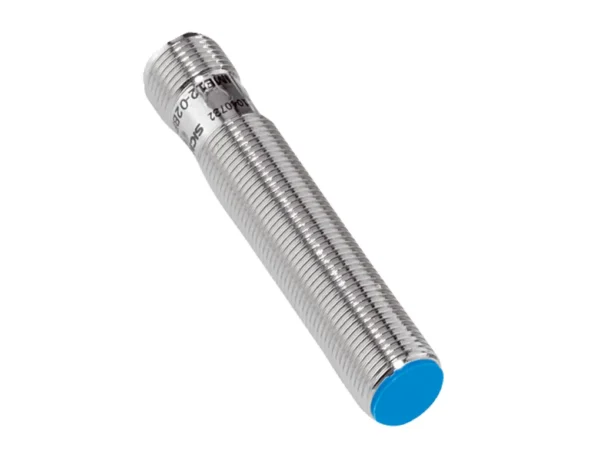

Name: SICK 1107314 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1107314
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range S_n	0 mm … 2 mm
Installation type	Flush
Connection type	Male connector M12, 4-pin
Output function	Analog
Repeatability (T_a not constant)	0.3 mm
Repeatability (T_a constant)	± 0.1 mm
Enclosure rating	IP67
Special features	Analog output
Items supplied	Mounting nut, brass, nickel-plated (2x)

Mechanics/electronics

Supply voltage	15 V DC … 30 V DC
Ripple	≤ 20 %
Time delay before availability	≤ 30 ms
Temperature drift (of S_r)	≤ 10 %
No load current	≤ 12 mA
Max. load resistance on Q_A1	≥ 2 kΩ
Max. load resistance on Q_A2	400 Ω Ub = 15 V
Output voltage Q_A1	s = 0 mm: 0 V –0/+0,6 V (23 °C) s = 1 mm: +4,9 V +/-0,6 V (23 °C) s = 2 mm: +10 V +/-0,6 V (23 °C)
Output current Q_A2	s = 0 mm: 4 mA +/-0.8 mA (23 °C) s = 2 mm: 20 mA +/-0,8 mA (23 °C)
Output voltage	0 V … 10 V
Output current	4 mA … 20 mA
Bandwidth	1,000 Hz
Short-circuit protection	✔
Reverse polarity protection	✔
Ambient operating temperature	–25 °C … +70 °C
Housing material	Brass, chromium-plated
Sensing face material	Plastic
Housing length	65 mm
Thread length	48 mm

Safety-related parameters

Installation note

Remark	Associated graphic see “Installation”
B	24 mm
C	12 mm
D	12 mm
F	32 mm
