Name: SICK 6041782 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6041782
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Thread size	M8 x 1
Diameter	Ø 8 mm
Sensing range S_n	0 mm … 4 mm
Installation type	Quasi-flush
Connection type	Male connector M12, 4-pin
Output function	Analog
Repeatability (T_a not constant)	0.3 mm
Repeatability (T_a constant)	± 0.01 mm
Resolution	≤ 1 µm
Enclosure rating	IP67
Special features	Analog output
Items supplied	Mounting nut, brass, chromium-plated (2x) Toothed washer, stainless steel (2 x)

Mechanics/electronics

Supply voltage	15 V DC … 30 V DC
Ripple	≤ 20 %
Time delay before availability	≤ 50 ms
Temperature drift (of S_r)	± 5 % ± 10 %
No load current	≤ 10 mA
Load current	± 10 mA
Output voltage Q_A1	s = 0 mm: 0 V/-0 +0,4 V (23 °C) s = 2 mm: +5,2 V/ +-0,4 V (23 °C) s = 4 mm: +10 V/ +-0,4 V (23 °C)
Output voltage	0 V … 10 V
Bandwidth	1,600 Hz
Short-circuit protection	✔
Reverse polarity protection	✔
Ambient operating temperature	–25 °C … +70 °C
Housing material	Brass, chromium-plated
Sensing face material	Plastic, PTB
Housing length	66 mm
Thread length	44 mm

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.68
Aluminum (Al)	Approx. 0.28
Copper (Cu)	Approx. 0.25
Brass (Br)	Approx. 0.4

Installation note

Remark	Associated graphic see “Installation”
A	4 mm
B	12 mm
C	8 mm
D	12 mm
E	1 mm
F	40 mm

Classifications

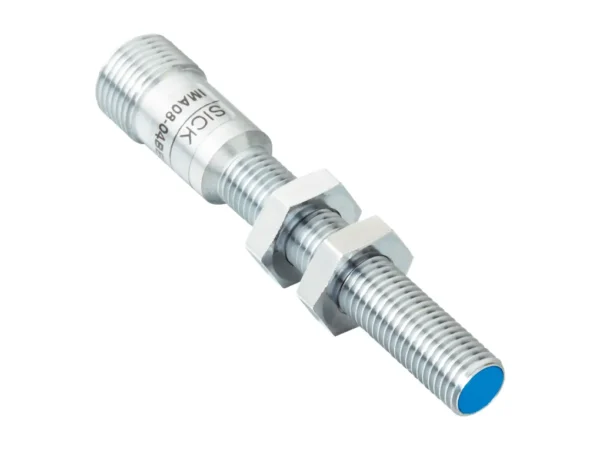

IMA08-04BE3ZC0K – 6041782
