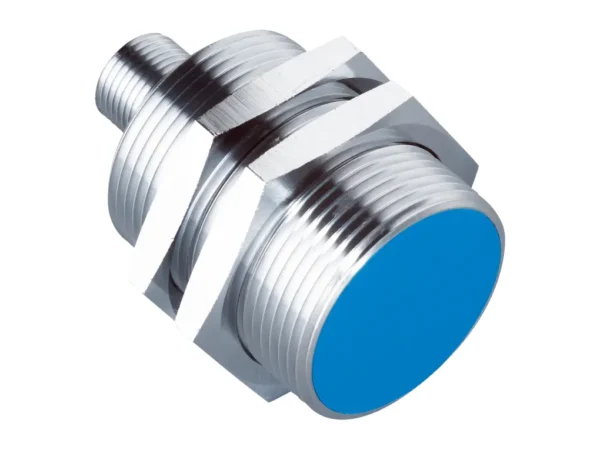

Home Endüktif Sensörler IM30-20B-A-ZC1 INDUCT.PROXIMITY SENSOR – 6033125 🔍 IM30-20B-A-ZC1 INDUCT.PROXIMITY SENSOR – 6033125 ✉ Teklif Al Teklif Al Stok kodu: 6033125 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 20 mm Installation type Quasi-flush Connection type Male connector M12, 4-pin Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.05 mm Resolution ≤ 5 µm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Toothed washer, stainless steel (2 x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 50 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Load current ± 10 mA Max. load resistance ≤ 400 Ω Ub = 15 V ≤ 1,000 Ω Ub = 30 V Output voltage QA1 s = 0 mm: 0 V/-0 +0,4 V (23 °C) s = 10 mm: +5,2 V/ +-0,4 V (23 °C) s = 20 mm: +10 V/ +-0,4 V (23 °C) Output current QA2 s = 0 mm: 4 mA/ +-0,8 mA (23 °C) s = 20 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Bandwidth 200 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, PTB Housing length 73.5 mm Thread length 52 mm Safety-related parameters MTTFD 87 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.17 Brass (Br) Approx. 0.3 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 20 mm Installation type Quasi-flush Connection type Male connector M12, 4-pin Repeatability (Ta not constant) 0.3 mm Repeatability (Ta constant) ± 0.05 mm Resolution ≤ 5 µm Enclosure rating IP67 Special features Analog output Items supplied Mounting nut, brass, chromium-plated (2x) Toothed washer, stainless steel (2 x) Mechanics/electronics Supply voltage 15 V DC … 30 V DC Ripple ≤ 20 % Time delay before availability ≤ 50 ms Temperature drift (of Sr) ≤ 10 % No load current ≤ 12 mA Load current ± 10 mA Max. load resistance ≤ 400 Ω Ub = 15 V ≤ 1,000 Ω Ub = 30 V Output voltage QA1 s = 0 mm: 0 V/-0 +0,4 V (23 °C) s = 10 mm: +5,2 V/ +-0,4 V (23 °C) s = 20 mm: +10 V/ +-0,4 V (23 °C) Output current QA2 s = 0 mm: 4 mA/ +-0,8 mA (23 °C) s = 20 mm: 20 mA +/-0,8 mA (23 °C) Output voltage 0 V … 10 V Bandwidth 200 Hz Short-circuit protection ✔ Reverse polarity protection ✔ Ambient operating temperature –25 °C … +70 °C Housing material Brass, chromium-plated Sensing face material Plastic, PTB Housing length 73.5 mm Thread length 52 mm Safety-related parameters MTTFD 87 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.65 Aluminum (Al) Approx. 0.2 Copper (Cu) Approx. 0.17 Brass (Br) Approx. 0.3 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
