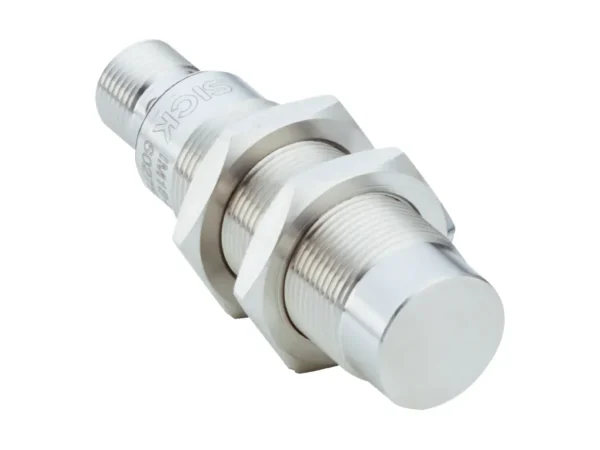

Home Endüktif Sensörler IM18-20NPS-VC1 – 6068721 🔍 IM18-20NPS-VC1 – 6068721 ✉ Teklif Al Teklif Al Stok kodu: 6068721 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Pressure resistance ≤ 60 bar Sensing range Sn 20 mm Safe sensing range Sa 16.2 mm Installation type Non-flush Switching frequency 200 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68, IP69K Special features Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 15 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ≤ 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303 Housing length 63.5 mm Thread length 35 mm Tightening torque, max. ≤ 50 Nm Protection class III UL File No. E191603 Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Process data structure A Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) Approx. 1 Stainless steel (V4A, 316L) Approx. 0.2 Aluminum (Al) Approx. 1 Copper (Cu) Approx. 0.9 Brass (Br) Approx. 1.35 Installation note Remark Associated graphic see “Installation” A 41 mm B 182 mm C 18 mm D 60 mm E Aluminum: 22 mm, Steel: 36 mm, Brass: 22 mm, Stainless steel: 43 mm F 220 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3N12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Pressure resistance ≤ 60 bar Sensing range Sn 20 mm Safe sensing range Sa 16.2 mm Installation type Non-flush Switching frequency 200 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68, IP69K Special features Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 15 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ≤ 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303 Housing length 63.5 mm Thread length 35 mm Tightening torque, max. ≤ 50 Nm Protection class III UL File No. E191603 Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Process data structure A Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) Approx. 1 Stainless steel (V4A, 316L) Approx. 0.2 Aluminum (Al) Approx. 1 Copper (Cu) Approx. 0.9 Brass (Br) Approx. 1.35 Installation note Remark Associated graphic see “Installation” A 41 mm B 182 mm C 18 mm D 60 mm E Aluminum: 22 mm, Steel: 36 mm, Brass: 22 mm, Stainless steel: 43 mm F 220 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
