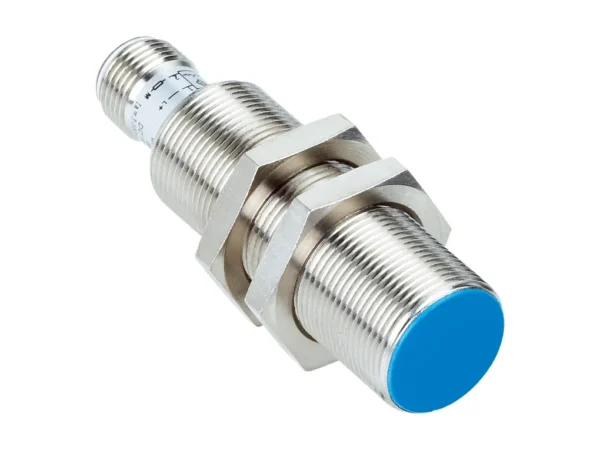

Home Endüktif Sensörler IM18-08NNO-ZW1 – 6011998 🔍 IM18-08NNO-ZW1 – 6011998 ✉ Teklif Al Teklif Al Stok kodu: 6011998 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Installation type Non-flush Switching frequency 600 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1 V Time delay before availability ≤ 100 ms Hysteresis 2 % … 10 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 400 mA Cable material PVC Conductor size 0.34 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Brass, Nickel-plated brass Sensing face material Plastic Housing length 50 mm Thread length 32 mm Tightening torque, max. 30 Nm Safety-related parameters MTTFD 93 years DCavg 0 % Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Endüstriyel bağlantı kablosu – 872C-MM1NP7-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Accessories, AC Micro Dual Key, Male (External Threads), Straight, 3-Pin, 6-8mm (0.24-0.31) PG9, Standard Materials, Standard – 871A-TS3-RM1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Installation type Non-flush Switching frequency 600 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NC Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1 V Time delay before availability ≤ 100 ms Hysteresis 2 % … 10 % Reproducibility ≤ 2 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 400 mA Cable material PVC Conductor size 0.34 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Brass, Nickel-plated brass Sensing face material Plastic Housing length 50 mm Thread length 32 mm Tightening torque, max. 30 Nm Safety-related parameters MTTFD 93 years DCavg 0 % Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 24 mm E 16 mm F 64 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
