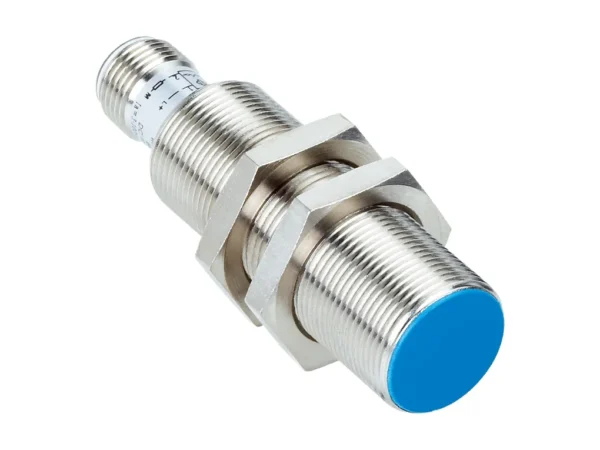

Name: SICK 6011989 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6011989
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 1 V
Time delay before availability	≤ 100 ms
Hysteresis	2 % … 10 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	± 10 %
EMC	According to EN 60947-5-2
Continuous current I_a	≤ 400 mA
Cable material	PVC
Conductor size	0.34 mm²
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Brass, Nickel-plated brass
Sensing face material	Plastic
Housing length	50 mm
Thread length	40 mm
Tightening torque, max.	30 Nm

Safety-related parameters

MTTF_D	93 years
DC_avg	0 %

Installation note

Remark	Associated graphic see “Installation”
A	9 mm
B	18 mm
C	18 mm
D	15 mm
E	3.6 mm
F	40 mm

Classifications
