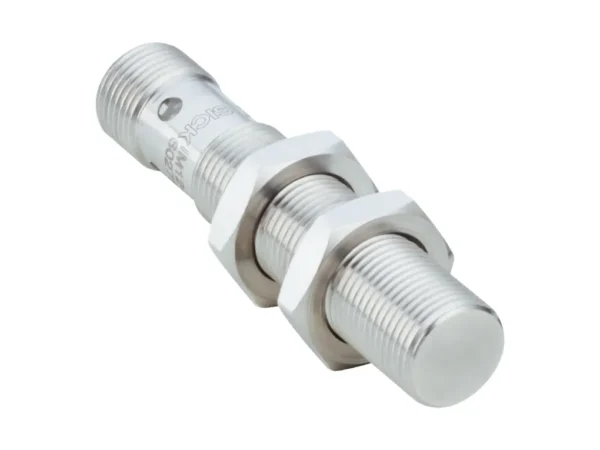

Home Endüktif Sensörler IM12-06BPS-VC1 – 6068718 🔍 IM12-06BPS-VC1 – 6068718 ✉ Teklif Al Teklif Al Stok kodu: 6068718 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Pressure resistance ≤ 80 bar Sensing range Sn 6 mm Safe sensing range Sa 4.86 mm Installation type Flush Switching frequency 600 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68, IP69K Special features Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ≤ 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303 Housing length 60 mm Thread length 41 mm Tightening torque, max. ≤ 20 Nm Protection class III UL File No. E191603 Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Process data structure A Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) Approx. 1 Stainless steel (V4A, 316L) Approx. 0.45 Aluminum (Al) Approx. 1 Copper (Cu) Approx. 0.85 Brass (Br) Approx. 1.3 Installation note Remark Associated graphic see “Installation” B 38 mm C 12 mm D 18 mm F 45 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LAAH1ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3C12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 871L-B20E40-N3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Pressure resistance ≤ 80 bar Sensing range Sn 6 mm Safe sensing range Sa 4.86 mm Installation type Flush Switching frequency 600 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP68, IP69K Special features Sensing face made of stainless steel V2A, Resistant against coolant lubricants, triple sensing range, Visual adjustment indicator, IO-Link Special applications Zones with coolants and lubricants, Difficult application conditions Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 15 % Reproducibility ≤ 5 % Temperature drift (of Sr) ≤ 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +85 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303 Housing length 60 mm Thread length 41 mm Tightening torque, max. ≤ 20 Nm Protection class III UL File No. E191603 Communication interface Communication interface IO-Link V1.0 Communication Interface detail COM2 (38,4 kBaud) Process data length 1 Byte Process data structure Bit 0 = Sr reached Process data structure A Bit 1 = Sa reached Reduction factors Note The values are reference values which may vary St37 steel (Fe) Approx. 1 Stainless steel (V4A, 316L) Approx. 0.45 Aluminum (Al) Approx. 1 Copper (Cu) Approx. 0.85 Brass (Br) Approx. 1.3 Installation note Remark Associated graphic see “Installation” B 38 mm C 12 mm D 18 mm F 45 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
