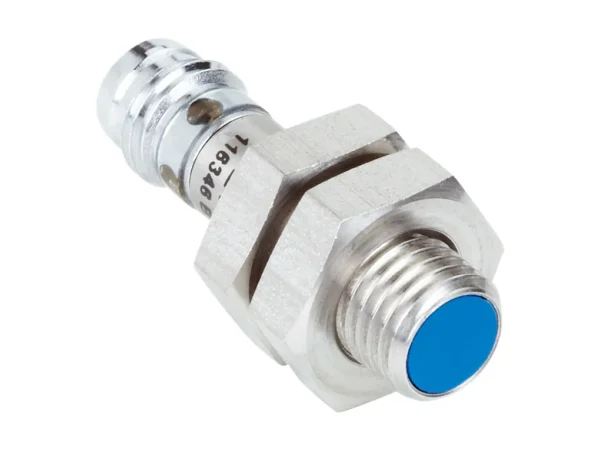

Home Endüktif Sensörler IM08-02BPS-VUK – 6036787 🔍 IM08-02BPS-VUK – 6036787 ✉ Teklif Al Teklif Al Stok kodu: 6036787 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 3,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis ≤ 10 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic Housing length 16 mm Thread length 16 mm Tightening torque, max. ≤ 4 Nm Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Side – 802PR-LAAA3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, DC, 2 mm Sensing Distance, Normally Open Sourcing, Micro Quick Disconnect – 871Z-DW2NP12-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 3,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis ≤ 10 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic Housing length 16 mm Thread length 16 mm Tightening torque, max. ≤ 4 Nm Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.45 Copper (Cu) Approx. 0.4 Brass (Br) Approx. 0.5 Installation note Remark Associated graphic see “Installation” Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
