Name: SICK 6049736 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 6049736
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical thread design
Housing	Standard design
Thread size	M5 x 0.5
Diameter	Ø 5 mm
Sensing range S_n	1.5 mm
Safe sensing range S_a	1.215 mm
Installation type	Flush
Switching frequency	3,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	PNP
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67
Items supplied	Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x)

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 20 %
Voltage drop	≤ 2 V
Time delay before availability	≤ 10 ms
Hysteresis	1 % … 10 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	≤ 10 %
EMC	EN 60947-5-2 IEC 61000-4-2: (Testlevel 2) IEC 61000-4-4: (Testlevel 3)
Cable material	PUR
Conductor size	0.14 mm²
Cable diameter	Ø 3.5 mm
Short-circuit protection	✔
Reverse polarity protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, POM
Housing length	25 mm
Thread length	20 mm
Tightening torque, max.	≤ 1.8 Nm
UL File No.	NRKH.E191603

Safety-related parameters

Reduction factors

Note	The values are reference values which may vary
Stainless steel (V2A, 304)	Approx. 0.75
Aluminum (Al)	Approx. 0.4
Copper (Cu)	Approx. 0.4
Brass (Br)	Approx. 0.5

Installation note

Remark	Associated graphic see “Installation”
A	1.5 mm
B	1 mm
C	5 mm
D	4.5 mm
E	0 mm
F	12 mm

Classifications

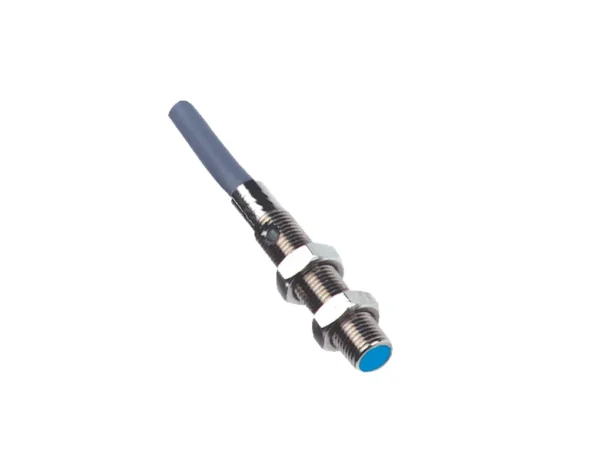

IM05-1B5POVU2S – 6049736
