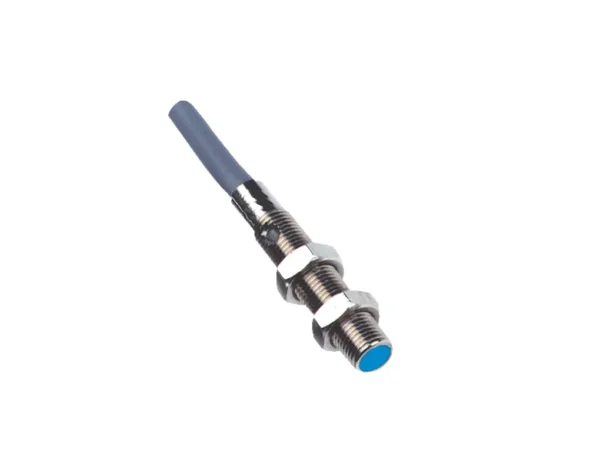

Home Endüktif Sensörler IM05-0B8PS-ZW1 – 6011591 🔍 IM05-0B8PS-ZW1 – 6011591 ✉ Teklif Al Teklif Al Stok kodu: 6011591 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 IEC 61000-4-2: (Testlevel 2) IEC 61000-4-4: (Testlevel 2) Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 25 mm Thread length 20 mm Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.45 Brass (Br) Approx. 0.55 Installation note Remark Associated graphic see “Installation” A 0.8 mm B 0 mm C 5 mm D 2.4 mm E 0 mm F 7 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Metal Face, Short Barrel, 30 mm Barrel Diameter, DC, 10 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH10NP30-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Prox Sensor, Nickel Brass Inductive Sensor, 8 mm Barrel Diameter, DC Standard, 2 mm Sensing Distance, Normally Open Sourcing, Standard Barrel, 4 Pin DC Micro QD, 5-30V DC – 872C-D2NP8-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git 18 mm Barrel Inductive Prox Sensor – 872C-DH8NP18-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Limit Style Inductive Sensor, 40 mm, AC/DC, 20 mm Sensing Distance, 1 NOC & 3 NCC, AC Conduit Style – 871L-B20E40-T2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Standard design Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable, 3-wire, 2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Items supplied Mounting nut, V2A stainless steel (2x) Washer, V2A stainless steel, with locking teeth (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 IEC 61000-4-2: (Testlevel 2) IEC 61000-4-4: (Testlevel 2) Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 25 mm Thread length 20 mm Tightening torque, max. ≤ 1.5 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.45 Brass (Br) Approx. 0.55 Installation note Remark Associated graphic see “Installation” A 0.8 mm B 0 mm C 5 mm D 2.4 mm E 0 mm F 7 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
