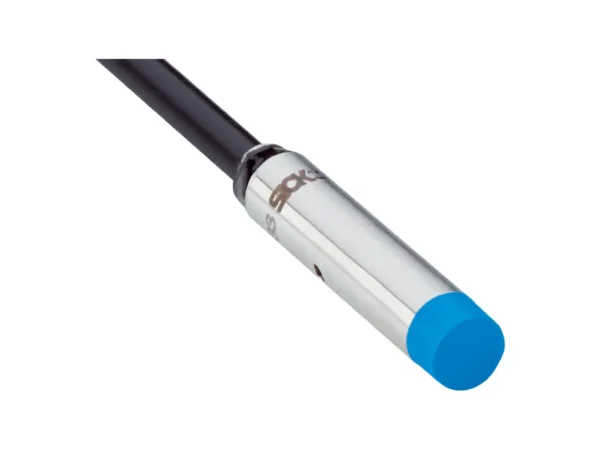

Home Endüktif Sensörler IHM06-06NNSVW2K – 1106314 🔍 IHM06-06NNSVW2K – 1106314 ✉ Teklif Al Teklif Al Stok kodu: 1106314 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical smooth housing Housing Short-body Diameter Ø 6.5 mm Sensing range Sn 6 mm Safe sensing range Sa 4.86 mm Installation type Non-flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Visual adjustment indicator, triple sensing range Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 80 ms Hysteresis 1 % … 10 % Reproducibility ≤ 2 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 31.5 mm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,330 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.75 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.43 Brass (Br) Approx. 0.54 Installation note Remark Associated graphic see “Installation” A 12 mm B 35 mm C 6.5 mm D 18 mm E 12 mm F 48 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Metal Face, 30 mm Barrel Diameter, AC/DC, 10 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B10N30-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 871TM-B3N12-A2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor – 872C-DX34-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical smooth housing Housing Short-body Diameter Ø 6.5 mm Sensing range Sn 6 mm Safe sensing range Sa 4.86 mm Installation type Non-flush Switching frequency 1,000 Hz Connection type Cable, 3-wire, 2 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Visual adjustment indicator, triple sensing range Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 80 ms Hysteresis 1 % … 10 % Reproducibility ≤ 2 % Temperature drift (of Sr) ≤ 10 % EMC EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.25 mm² Cable diameter Ø 3.7 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 31.5 mm UL File No. NRKH.E348498 Safety-related parameters MTTFD 1,330 years DCavg 0 % Reduction factors Note The values are reference values which may vary St37 steel (Fe) 1 Stainless steel (V2A, 304) Approx. 0.75 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.43 Brass (Br) Approx. 0.54 Installation note Remark Associated graphic see “Installation” A 12 mm B 35 mm C 6.5 mm D 18 mm E 12 mm F 48 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
