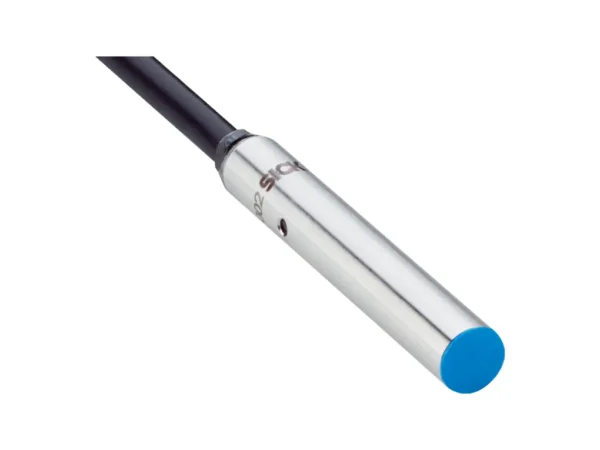

Name: SICK 1104492 | Endüktif Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1104492
Price: 1800.00 TRY
Availability: InStock

Tecnichal data

Features

Housing	Cylindrical smooth housing
Housing	Standard design
Diameter	Ø 6.5 mm
Sensing range S_n	2 mm
Safe sensing range S_a	1.62 mm
Installation type	Flush
Switching frequency	5,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	NPN
Output function	NC
Electrical wiring	DC 3-wire
Enclosure rating	IP67
Special features	Visual adjustment indicator

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 20 %
Voltage drop	≤ 2 V
Time delay before availability	≤ 50 ms
Hysteresis	1 % … 10 %
Reproducibility	≤ 2 %
Temperature drift (of S_r)	≤ 10 %
EMC	EN 60947-5-2
Continuous current I_a	≤ 200 mA
Cable material	PVC
Conductor size	0.25 mm²
Cable diameter	Ø 3.7 mm
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	Plastic, LCP
Housing length	42.3 mm
UL File No.	NRKH.E348498

Safety-related parameters

MTTF_D	1,330 years
DC_avg	0 %

Reduction factors

Note	The values are reference values which may vary
St37 steel (Fe)	1
Stainless steel (V2A, 304)	Approx. 0.75
Aluminum (Al)	Approx. 0.5
Copper (Cu)	Approx. 0.43
Brass (Br)	Approx. 0.54

Installation note

Remark	Associated graphic see “Installation”
B	6 mm
C	6.5 mm
D	6 mm
F	16 mm
