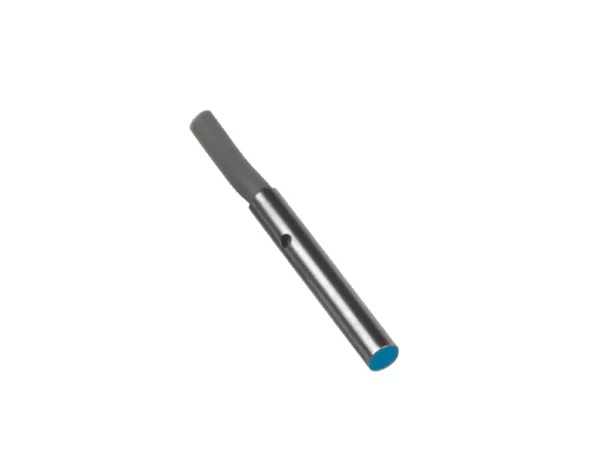

Home Endüktif Sensörler IH04-0B8PS-VUD – 6054677 🔍 IH04-0B8PS-VUD – 6054677 ✉ Teklif Al Teklif Al Stok kodu: 6054677 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical smooth housing Housing Standard design Diameter Ø 4 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable, 3-wire, 85 mm Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ± 10 % EMC EN 60947-5-2 IEC 61000-4-2: (Testlevel 2) IEC 61000-4-4: (Testlevel 2) Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 25 mm UL File No. NRKH.E191603 Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.45 Brass (Br) Approx. 0.55 Installation note Remark Associated graphic see “Installation” A 0 mm B 1 mm C 4 mm D 2.4 mm E 0 mm F 7 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230 İlgili ürünler Inductive Sensor, Metal Face, 18 mm Barrel Diameter, AC/DC, 8 mm Sensing Distance, AC Normally Open Contacts, 2 M 18 AWG ToughLink – 871TM-B8N18-H2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Normally Open Output, 102-132V AC, AC, Hazardous Location, 13 mm Sensing Range, 2 Wire, Conduit, Shielded, Top – 802PR-LAAJ3ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, Metal Face, Short Barrel, 30 mm Barrel Diameter, DC, 10 mm Sensing Distance, DC NOC Sourcing, Micro Quick Disconnect – 871TM-DH10NP30-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical smooth housing Housing Standard design Diameter Ø 4 mm Sensing range Sn 0.8 mm Safe sensing range Sa 0.648 mm Installation type Flush Switching frequency 5,000 Hz Connection type Cable, 3-wire, 85 mm Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 20 % Voltage drop ≤ 2 V Time delay before availability ≤ 10 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1.5 % Temperature drift (of Sr) ± 10 % EMC EN 60947-5-2 IEC 61000-4-2: (Testlevel 2) IEC 61000-4-4: (Testlevel 2) Continuous current Ia ≤ 200 mA Cable material PUR Conductor size 0.14 mm² Cable diameter Ø 3.5 mm Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 25 mm UL File No. NRKH.E191603 Safety-related parameters MTTFD 186 years DCavg 0% TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Stainless steel (V2A, 304) Approx. 0.8 Aluminum (Al) Approx. 0.5 Copper (Cu) Approx. 0.45 Brass (Br) Approx. 0.55 Installation note Remark Associated graphic see “Installation” A 0 mm B 1 mm C 4 mm D 2.4 mm E 0 mm F 7 mm Classifications ECLASS 5.0 27270101 ECLASS 5.1.4 27270101 ECLASS 6.0 27270101 ECLASS 6.2 27270101 ECLASS 7.0 27270101 ECLASS 8.0 27270101 ECLASS 8.1 27270101 ECLASS 9.0 27270101 ECLASS 10.0 27270101 ECLASS 11.0 27270101 ECLASS 12.0 27274001 ETIM 5.0 EC002714 ETIM 6.0 EC002714 ETIM 7.0 EC002714 ETIM 8.0 EC002714 UNSPSC 16.0901 39122230
