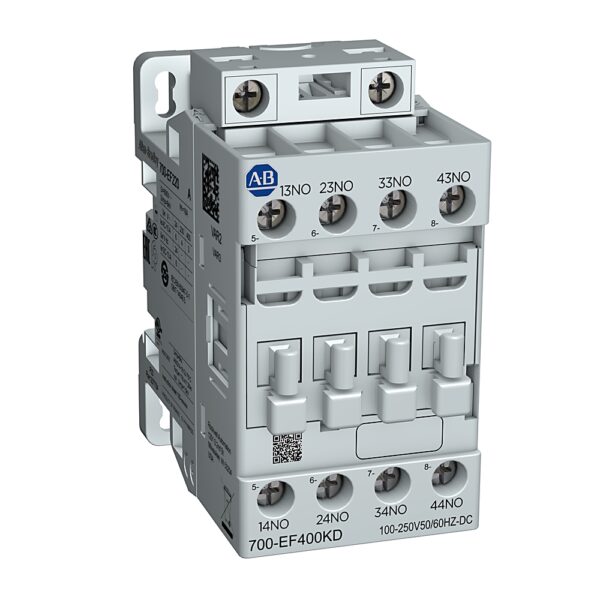

Tecnichal data
| Voltage type for actuating | AC/DC |
| Rated control supply voltage at DC | 48 V |
| Rated control supply voltage at AC 50 Hz | 48 V |
| Rated control supply voltage at AC 60 Hz | 48 V |
| Mounting method | DIN-rail/screw |
| Number of contact as normally closed | 1 |
| Number of contact as normally open | 3 |
| Contact form | 4-pole |
| Rated frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 690V per IEC |
| Rated insulation voltage | 600V DC per UL/CSA |
| Switching of AC Loads | 6 A @ 42-48V, AC-15 |
| Switching capacity | Q600 @ DC per UL/CSA |
| Contact rating, continuous | 2.5 A @ 40 ðC per UL/CSA |
| Operating limits, dropout | (ââ°¤0.60) x Us @ DC control |
| AC coil voltage | 6 A @ 120V, AC-15 |
| Operating limits, pick-up | (0.85…1.1) x Us @ 50/60 Hz |
| Rated voltage (Ue) | 24, 48, 120, 230, 400, 500, 690V AC |
| Switching of DC loads | 6 A @ 24V DC, DC-13 switching electromagnets |
| Rated thermal current (Ith) | 4-poles: 16 A @ ââ°¤40 ðC, AC-12 |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated impulse strength (Uimp) | 6 kV |
| Conventional thermal current (Ith) | 10 A |
| Dielectric withstand | 2.5 kV |
| Rated operational voltage (Ue) | 690 V |
| VA rating, break | 720 |
| VA rating, make | 7200 |
| Load | 12V, 3 mA (Silver), minimum |
| Electric service life | 1.5 million (AC-15 240V, 3 A) |
| Coil voltage pickup | 85…110% AC coils, 80…110% DC coils |
| Type of protection | IP2X (IEC 60529 and DIN 40050), in connected state |
| Operating time, closing delay | 40 ms |
| Connection type | Screw connection |
| Operating time, opening delay | 11 to 95 ms |
| Contact material | Silver |
| Shock resistance | IEC 60068-2: Half sinusoidal shock 11 ms, 25G (in 3 directions |
| Suitable for manual operation | No |
| Mechanical life | 20 mil |
| Vibration resistance | IEC 60068-2: Static >2 G, in normal position no malfunction <5 G |
| Features | Mechanically linked contacts, Timer and latch operations, Switch up to 690V AC and DC |
| Height | Approx 86 mm |
| Length | Approx 45 mm |
| Width | Approx 77 mm |
| Altitude | 3000 m |
| Ambient temperature | Storage: ââ¬Ã¢60…80 ðC |
| Standards compliance | UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, -5-1, RoHS |
