Name: Allen Bradley 100-C37ED10 | Kontaktör | Royal Endüstriyel
Brand: ALLEN BRADLEY
SKU: 100-C37ED10
Price: 2200.00 TRY
Availability: InStock

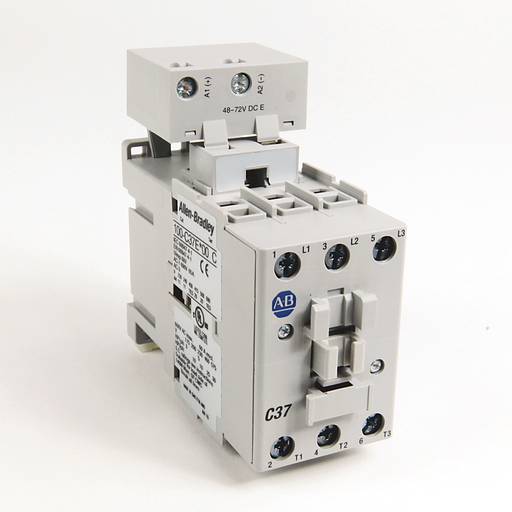

IEC 37 A Contactor – 100-C37ED10

✉ Teklif Al

Teklif Al

Stok kodu: 100-C37ED10 Kategoriler: Kontaktörler Marka: ALLEN BRADLEY

Technical Specs

Specifications
Connection:Screw Terminals
3-Phase kW (50 Hz) 230V Rating:11
3-Phase kW (50 Hz) 400V/415V Rating:18.5/20
3-Phase kW (50 Hz) 500V Rating:20
3-Phase kW (50 Hz) 690V Rating:18.5
3-Phase HP (60 Hz) 200V Rating:10
3-Phase HP (60 Hz) 230V Rating:10
3-Phase HP (60 Hz) 460V Rating:25
3-Phase HP (60 Hz) 575V Rating:30
Contactor Data
Terminal Type:Screw Terminals
Rated Operating Current, AC-3:37A
Coil Voltage:110-125V DC Electronic Coil
No. of Poles:3 Poles
Coil Termination:Line Side
Contact Configuration:1 N.O. 0 N.C. Auxiliary Contact Configuration
Package Quantity:1
Application Data
Electrical Standards:UL
Load Data [Optional]
Utilization Category:AC-3 Squirrel-cage motor starting and stopping
Life Data [Optional]
Actual Life:Actual Life Cannot be Calculated (more information)…
Terminal Marking Positions Used
100-C or 104-C Contactor:1_
Front Mounted Auxiliary Contact:None
Left Side Auxiliary Contact:None
Right Side Auxiliary Contact:None
Interlock:None

IEC 37 A Contactor – 100-C37ED10
