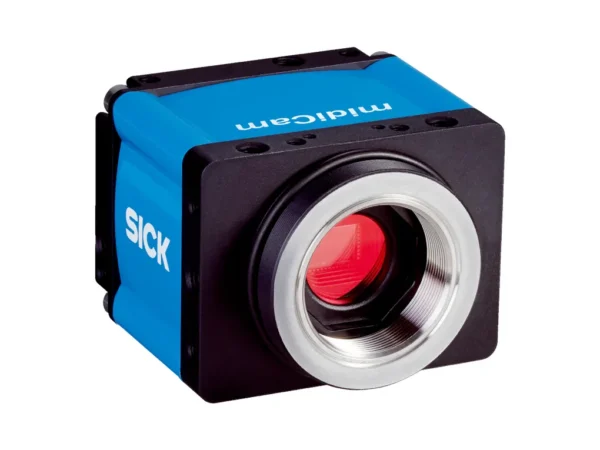

Home Vision Sensor I2D612M-2MCB71 – 6071833 🔍 I2D612M-2MCB71 – 6071833 ✉ Teklif Al Teklif Al Stok kodu: 6071833 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS monochrome Sensor used Sony IMX304 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, area of interest, long exposure Lens C-mount Optical format 1,1″ Note To be ordered separately as accessories Mechanics/electronics Connection type M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output) Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP65 IP67 Weight 170 g Dimensions (L x W x H) 42.7 mm x 53 mm x 41 mm Performance Bit depth 12 bit Sensor resolution 4,096 px x 3,000 px (12.29 Mpixel) Sensor size 14.132 mm x 10.35 mm Scan/frame rate 10 fps, in freerun mode Memory 128 MB Exposure time 0.046 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler ISD400-7311 – 1071522SICKVision Sensor ₺850,00 Ürüne Git VSPM-6F2413 – 1062408SICKVision Sensor ₺28.000,00 Ürüne Git V2D642R-MCXXH6 – 1071472SICKVision Sensor ₺28.000,00 Ürüne Git ISD400-7211 – 1065100SICKVision Sensor ₺850,00 Ürüne Git
Tecnichal data Features Task Inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS monochrome Sensor used Sony IMX304 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, area of interest, long exposure Lens C-mount Optical format 1,1″ Note To be ordered separately as accessories Mechanics/electronics Connection type M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output) Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP65 IP67 Weight 170 g Dimensions (L x W x H) 42.7 mm x 53 mm x 41 mm Performance Bit depth 12 bit Sensor resolution 4,096 px x 3,000 px (12.29 Mpixel) Sensor size 14.132 mm x 10.35 mm Scan/frame rate 10 fps, in freerun mode Memory 128 MB Exposure time 0.046 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
