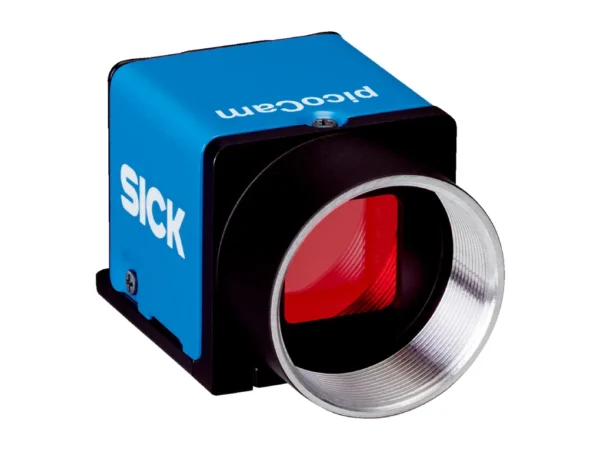

Home Vision Sensor I2D305C-2RCA11 – 6071826 🔍 I2D305C-2RCA11 – 6071826 ✉ Teklif Al Teklif Al Stok kodu: 6071826 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Color inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS Color Sensor used Sony IMX264 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, region of interest, long exposure Lens C-mount Optical format 2/3″ Note To be ordered separately as accessories Mechanics/electronics Connection type 8-pin Hirose male connector Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP30 Weight 52 g Dimensions (L x W x H) 29 mm x 29 mm x 29 mm Performance Bit depth 12 bit Sensor resolution 2,448 px x 2,048 px (5.01 Mpixel) Sensor size 8.446 mm x 7.066 mm Scan/frame rate 24 fps, in freerun mode Memory 128 MB Exposure time 0.035 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler ISD400-7321 – 1071580SICKVision Sensor ₺850,00 Ürüne Git VSPM-6B2413 – 1064566SICKVision Sensor ₺28.000,00 Ürüne Git ISD400-7212 – 1065101SICKVision Sensor ₺850,00 Ürüne Git V2D652R-MEWHF6 – 1071727SICKVision Sensor ₺28.000,00 Ürüne Git
Tecnichal data Features Task Color inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS Color Sensor used Sony IMX264 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, region of interest, long exposure Lens C-mount Optical format 2/3″ Note To be ordered separately as accessories Mechanics/electronics Connection type 8-pin Hirose male connector Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP30 Weight 52 g Dimensions (L x W x H) 29 mm x 29 mm x 29 mm Performance Bit depth 12 bit Sensor resolution 2,448 px x 2,048 px (5.01 Mpixel) Sensor size 8.446 mm x 7.066 mm Scan/frame rate 24 fps, in freerun mode Memory 128 MB Exposure time 0.035 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
