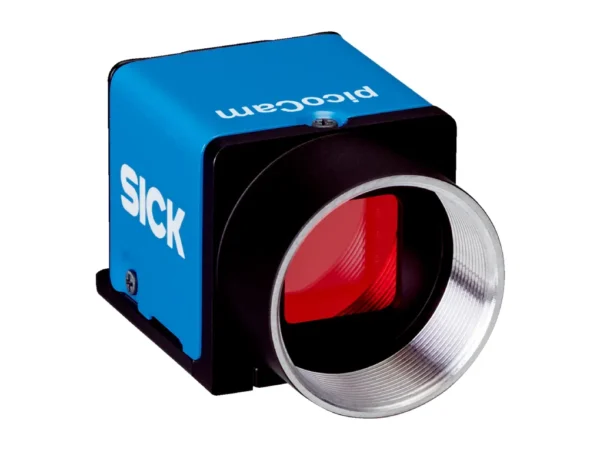

Home Vision Sensor I2D301M-2RCA11 – 6071820 🔍 I2D301M-2RCA11 – 6071820 ✉ Teklif Al Teklif Al Stok kodu: 6071820 Kategoriler: Vision Sensor Marka: SICK Açıklama Tecnichal data Features Task Color inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS monochrome Sensor used Sony IMX273 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, region of interest, long exposure Lens C-mount Optical format 1/3″ Note To be ordered separately as accessories Mechanics/electronics Connection type 8-pin Hirose male connector Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP30 Weight 51 g Dimensions (L x W x H) 29 mm x 29 mm x 29 mm Performance Bit depth 12 bit Sensor resolution 1,456 px x 1,088 px (1.58 Mpixel) Sensor size 5.023 mm x 3.754 mm Scan/frame rate 79 fps, in freerun mode Memory 128 MB Exposure time 0.025 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731 İlgili ürünler VSPM-6F2413 – 1062408SICKVision Sensor ₺28.000,00 Ürüne Git ISD400-7312 – 1071579SICKVision Sensor ₺850,00 Ürüne Git I12-SB215 – 1064507SICKVision Sensor ₺850,00 Ürüne Git V2D652R-MCXXA6 – 1063404SICKVision Sensor ₺28.000,00 Ürüne Git
Tecnichal data Features Task Color inspection Technology 2D snapshot Product category Streaming, flexible Sensor CMOS monochrome Sensor used Sony IMX273 Shutter technology Global-Shutter Illumination To be ordered separately as accessories Further functions Line mode, region of interest, long exposure Lens C-mount Optical format 1/3″ Note To be ordered separately as accessories Mechanics/electronics Connection type 8-pin Hirose male connector Supply voltage 12 V … 24 V Power consumption ≤ 3.1 W Enclosure rating IP30 Weight 51 g Dimensions (L x W x H) 29 mm x 29 mm x 29 mm Performance Bit depth 12 bit Sensor resolution 1,456 px x 1,088 px (1.58 Mpixel) Sensor size 5.023 mm x 3.754 mm Scan/frame rate 79 fps, in freerun mode Memory 128 MB Exposure time 0.025 ms … 2,000 ms Pixel size 3.45 µm Interfaces Ethernet ✔ , UDP/IP Data transmission rate 1,000 Mbit/s Configuration software SICK Vision Suite Ambient data Shock load 80 g, EN 60068-2-27 (1995-03), EN 60068-2-29 (1995-03) Vibration load 10 g, 30 Hz … 500 Hz, EN 60068-2-6 (1996-05) Ambient operating temperature 0 °C … +55 °C Storage temperature –20 °C … +60 °C General notes Note Not free of paint wetting impairment substances. Classifications ECLASS 5.0 27310205 ECLASS 5.1.4 27310205 ECLASS 6.0 27310205 ECLASS 6.2 27310205 ECLASS 7.0 27310205 ECLASS 8.0 27310205 ECLASS 8.1 27310205 ECLASS 9.0 27310205 ECLASS 10.0 27310205 ECLASS 11.0 27310205 ECLASS 12.0 27310205 ETIM 5.0 EC001820 ETIM 6.0 EC001820 ETIM 7.0 EC001820 ETIM 8.0 EC001820 UNSPSC 16.0901 43211731
