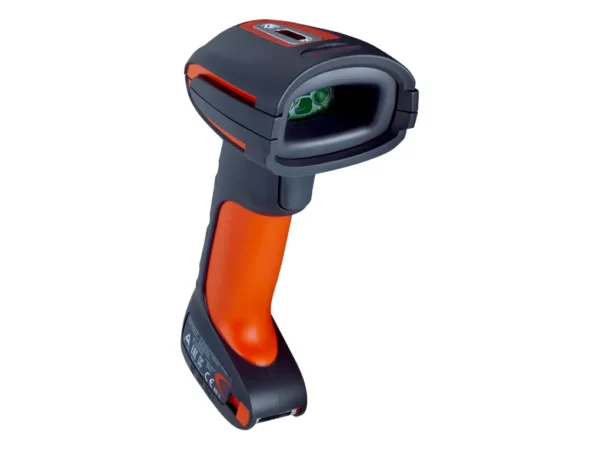

| Features |
| Version |
Full Range Focus |
| Application |
Industrial application |
| Scanner design |
Wireless variant |
| Sensor resolution |
1,280 px x 800 px |
| Light source |
LED, Visible, Red, 624 nm, ± 18 nm |
| Alignment aid |
Laser, Red, 650 nm |
| Reading distance |
150 mm … 16,000 mm |
| Code resolution |
≥ 0.05 mm
≥ 2 mm
|
|
| Mechanics/electronics |
| Supply voltage |
3.7 V DC |
| Current consumption |
Charging (5 V DC): 1 A
Standby: 120 mA
|
| Housing |
Plastic (UL 94 V-0) |
| Housing color |
Orange, gray |
| Enclosure rating |
IP65 |
| Weight |
420 g, incl. rechargeable battery |
| Dimensions (L x W x H) |
133 mm x 75 mm x 195 mm |
|
| Performance |
| Readable code structures |
1D codes, 2D codes, Stacked |
| Bar code types |
Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post |
| 2D code types |
Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode |
| Stacked code types |
PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
| Code alignment |
Omni-directional |
| Battery power |
Min. 7,200 scans (1 scan every 4 s over 8 hours) |
| Code buffer |
5,000 Codes (EAN, for scanning in batch mode), 100,000 Codes (EAN, for out of range scanning) |
|
| Interfaces |
| Ethernet |
✔ , TCP/IP |
| Type of fieldbus integration |
Optional over external fieldbus module CDF600-2 |
|
| PROFINET |
✔ |
| Type of fieldbus integration |
Optional over external fieldbus module CDF600-2 |
| Function |
PROFINET Single Port, PROFINET Dual Port |
|
| EtherCAT® |
✔ |
| Type of fieldbus integration |
Optional over external fieldbus module CDF600 |
|
| Serial |
✔ , RS-232 TTL |
| Remark |
RS-232 (± 12 V) |
|
| PROFIBUS DP |
✔ |
| Type of fieldbus integration |
Optional over external fieldbus module CDF600-2 |
|
| USB |
✔ |
| Function |
Keyboard wedge, COM-Port emulation |
|
| PS/2 |
✔ |
| Function |
Keyboard wedge |
|
| Bluetooth |
✔ |
| Remark |
BluetoothTM V2.1 EDR, 2.4 … 2.4835 GHz |
| Function |
Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station |
|
| Optical indicators |
2 LEDs (good read, charge of battery , radio connection status) |
| Acoustic indicators |
Beeper, can be switched off |
| Vibration |
Yes |
| Configuration software |
EZConfig Tool |
|
| Ambient data |
| Shock resistance |
50 drop tests onto concrete from a height of 2 m at –30 °C |
| Ambient operating temperature |
–20 °C … +50 °C |
| Storage temperature |
–40 °C … +70 °C |
| Permissible relative humidity |
95 %, Non-condensing |
| Ambient light immunity |
100,000 lx |
| Bar code print contrast (PCS) |
≥ 40 % |
|
| General notes |
| Items supplied |
The battery is included in delivery |
| Note |
A base station, power supply unit, and connecting cable may be required for operation. |
|
| Classifications |
| ECLASS 5.0 |
27280101 |
| ECLASS 5.1.4 |
27280101 |
| ECLASS 6.0 |
27280101 |
| ECLASS 6.2 |
27280101 |
| ECLASS 7.0 |
27280101 |
| ECLASS 8.0 |
27280101 |
| ECLASS 8.1 |
27280101 |
| ECLASS 9.0 |
27280101 |
| ECLASS 10.0 |
27280101 |
| ECLASS 11.0 |
27280101 |
| ECLASS 12.0 |
27280101 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002550 |
| ETIM 8.0 |
EC002550 |
| UNSPSC 16.0901 |
43211701 |
|
