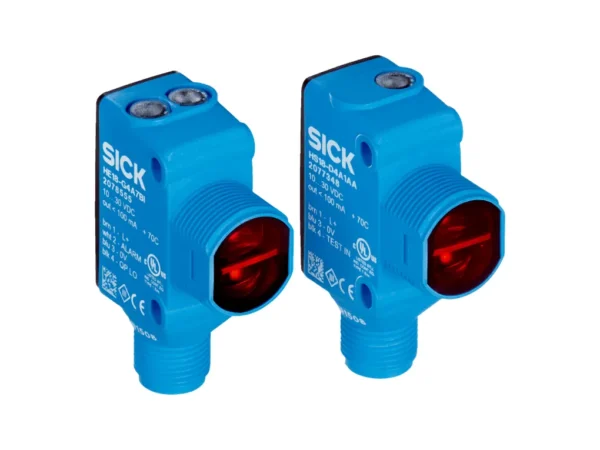

Home Fotoelektrik Sensörler HSE18L-V4A5BA – 1099602 🔍 HSE18L-V4A5BA – 1099602 ✉ Teklif Al Teklif Al Stok kodu: 1099602 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 16.2 mm x 48.5 mm x 31.8 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 0 m … 60 m Sensing range 0 m … 50 m Type of light Visible red light Light source Laser Light spot size (distance) 2 mm (1.5 m) Wave length 655 nm Laser class I Adjustment Potentiometer, right None Potentiometer, left None Special applications Detecting small objects Special features Signal strength light bar Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption ≤ 20 mA Switching output PNP Switching mode Light switching Switching output detail Switching output Q1 PNP, Light switching Switching output Q2 PNP, Health output Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Circuit protection A B D Protection class III Weight 18 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP67 IP69K Items supplied Fastening nut (1x), M18, plastic, black, flat Electromagnetic compatibility (EMC) EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) Ambient operating temperature –30 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M12, 4-pin Pinouts sender BN 1 + (L+) WH 2 Not connected BU 3 – (M) BK 4 Test IN Pinouts receiver BN 1 + (L+) WH 2 Q2 BU 3 – (M) BK 4 Q1 İlgili ürünler PHOTOSWITCH Photoelectric Sensor, 1m (3.3ft), Clear Object Detection, Source (PNP), 4-pin DC Micro QD – 42CSS-C2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, PNP Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LPA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Accessory, Series 4000 Photoelectric, Mounting Bracket, Right Angle – 60-1479ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 16.2 mm x 48.5 mm x 31.8 mm Housing design (light emission) Hybrid Thread diameter (housing) M18 Mounting system type M18, head/side (24.1 … 25.4 mm) Housing color Blue Sensing range max. 0 m … 60 m Sensing range 0 m … 50 m Type of light Visible red light Light source Laser Light spot size (distance) 2 mm (1.5 m) Wave length 655 nm Laser class I Adjustment Potentiometer, right None Potentiometer, left None Special applications Detecting small objects Special features Signal strength light bar Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption ≤ 20 mA Switching output PNP Switching mode Light switching Switching output detail Switching output Q1 PNP, Light switching Switching output Q2 PNP, Health output Output current Imax. ≤ 100 mA Response time ≤ 0.5 ms Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Circuit protection A B D Protection class III Weight 18 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP67 IP69K Items supplied Fastening nut (1x), M18, plastic, black, flat Electromagnetic compatibility (EMC) EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.) Ambient operating temperature –30 °C … +55 °C Ambient temperature, storage –40 °C … +70 °C UL File No. E189383 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M12, 4-pin Pinouts sender BN 1 + (L+) WH 2 Not connected BU 3 – (M) BK 4 Test IN Pinouts receiver BN 1 + (L+) WH 2 Q2 BU 3 – (M) BK 4 Q1
