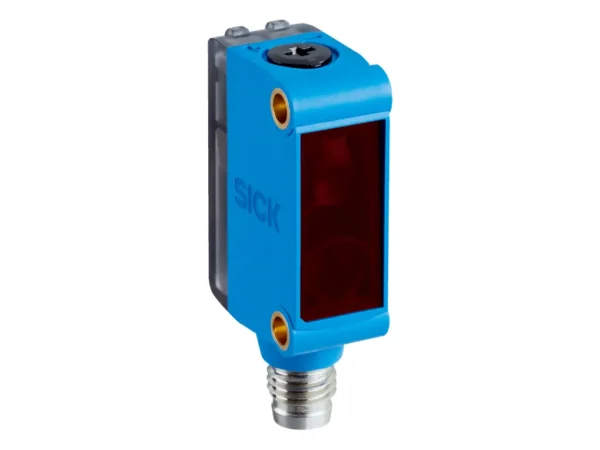

Home Fotoelektrik Sensörler GTE6L-P3211 – 1117676 🔍 GTE6L-P3211 – 1117676 ✉ Teklif Al Teklif Al Stok kodu: 1117676 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Sensing range Sensing range min. 0 mm Sensing range max. 450 mm Reference object Object with 90% remission factor (complies with standard white according to DIN 5033) Recommended sensing range for the best performance 5 mm … 400 mm Polarisation filters No Emitted beam Light source Laser Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 0.4 mm (150 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key laser figures Normative reference IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 Laser class 1 Wave length 680 nm Pulse duration 2 µs Maximum pulse power ≤ 11.9 mW Average service life 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. 0.4 mm (at 150 mm distance (object with 90% remission (corresponds to standard white DIN 5033))) Adjustment Potentiometer For setting the sensing range, 5 rotations Operating mode switch For inverting the switching function (light/dark switching) Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Safety-related parameters MTTFD 662 years DCavg 0 % TM (mission time) 10 years (EN 60825-1) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Usage category DC-13 (According to EN 60947-5-2) Current consumption ≤ 20 mA, without load. At UB = 24 V Protection class III Digital output Number 1 Type PNP Signal voltage PNP HIGH/LOW Approx. UB-3 V / 0 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 625 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, light switching, object present → output Q HIGH Function of pin 4/black (BK) – detail The pin 4 function of the sensor can be switched Mechanical data Housing Rectangular Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Connection Connector M8, 3-pin Material Housing Plastic, ABS Front screen Plastic, PMMA Cable PVC Male connector Copper alloy (C3604 CUZN39PB3) Weight Approx. 60 g Ambient data Enclosure rating IP67 (EN 60529) Ambient operating temperature –20 °C … +50 °C Ambient temperature, storage –40 °C … +70 °C Typ. Ambient light immunity Sunlight: ≤ 13,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 55 Hz (Amplitude 0.5 mm, 3×30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270903 ECLASS 5.1.4 27270903 ECLASS 6.0 27270903 ECLASS 6.2 27270903 ECLASS 7.0 27270903 ECLASS 8.0 27270903 ECLASS 8.1 27270903 ECLASS 9.0 27270903 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC001821 ETIM 6.0 EC001821 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Sensing range Sensing range min. 0 mm Sensing range max. 450 mm Reference object Object with 90% remission factor (complies with standard white according to DIN 5033) Recommended sensing range for the best performance 5 mm … 400 mm Polarisation filters No Emitted beam Light source Laser Type of light Visible red light Shape of light spot Point-shaped Light spot size (distance) Ø 0.4 mm (150 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key laser figures Normative reference IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 Laser class 1 Wave length 680 nm Pulse duration 2 µs Maximum pulse power ≤ 11.9 mW Average service life 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. 0.4 mm (at 150 mm distance (object with 90% remission (corresponds to standard white DIN 5033))) Adjustment Potentiometer For setting the sensing range, 5 rotations Operating mode switch For inverting the switching function (light/dark switching) Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Safety-related parameters MTTFD 662 years DCavg 0 % TM (mission time) 10 years (EN 60825-1) Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Usage category DC-13 (According to EN 60947-5-2) Current consumption ≤ 20 mA, without load. At UB = 24 V Protection class III Digital output Number 1 Type PNP Signal voltage PNP HIGH/LOW Approx. UB-3 V / 0 V Output current Imax. ≤ 100 mA Circuit protection outputs Reverse polarity protected Overcurrent protected Short-circuit protected Response time ≤ 625 µs Switching frequency 1,000 Hz Pin/Wire assignment Function of pin 4/black (BK) Digital output, light switching, object present → output Q HIGH Function of pin 4/black (BK) – detail The pin 4 function of the sensor can be switched Mechanical data Housing Rectangular Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Connection Connector M8, 3-pin Material Housing Plastic, ABS Front screen Plastic, PMMA Cable PVC Male connector Copper alloy (C3604 CUZN39PB3) Weight Approx. 60 g Ambient data Enclosure rating IP67 (EN 60529) Ambient operating temperature –20 °C … +50 °C Ambient temperature, storage –40 °C … +70 °C Typ. Ambient light immunity Sunlight: ≤ 13,000 lx Shock resistance 30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27)) Vibration resistance 10 Hz … 55 Hz (Amplitude 0.5 mm, 3×30 min (EN60068-2-6)) Air humidity 35 % … 95 %, Relative humidity (no condensation) Electromagnetic compatibility (EMC) EN 60947-5-2 UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270903 ECLASS 5.1.4 27270903 ECLASS 6.0 27270903 ECLASS 6.2 27270903 ECLASS 7.0 27270903 ECLASS 8.0 27270903 ECLASS 8.1 27270903 ECLASS 9.0 27270903 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC001821 ETIM 6.0 EC001821 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
