Name: SICK 1107210 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1107210
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Background suppression

Sensing range
Sensing range min.	10 mm
Sensing range max.	400 mm
Adjustable switching threshold for background suppression	30 mm … 400 mm
Reference object	Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)	3 mm, at a distance of 75 mm
Recommended sensing range for the best performance	30 mm … 180 mm

Polarisation filters

Emitted beam
Light source	Laser
Type of light	Visible red light
Shape of light spot	Point-shaped
Light spot size (distance)	Ø 0.4 mm (150 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)	< +/- 1.5° (at Ta = +23 °C)

Key laser figures
Normative reference	IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11
Laser class	1
Wave length	680 nm
Pulse duration	2 µs
Maximum pulse power	≤ 11.9 mW
Average service life	100,000 h at T_a = +25 °C

Smallest detectable object (MDO) typ.
	0.4 mm (at 150 mm distance (object with 90% remission (corresponds to standard white DIN 5033)))

Adjustment
Potentiometer	For setting the sensing range, 5 rotations
Operating mode switch	For inverting the switching function (light/dark switching)

Indication
LED green	Operating indicator Static on: power on
LED yellow	Status of received light beam Static on: object present Static off: object not present

Safety-related parameters

MTTF_D	662 years
DC_avg	0 %
T_M (mission time)	10 years (EN 60825-1)

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 5 V_pp

Usage category

DC-13 (According to EN 60947-5-2)

Current consumption

≤ 20 mA, without load. At U_B = 24 V

Protection class

III

Digital output
Number	2 (Complementary)
Type	PNP
Signal voltage PNP HIGH/LOW	Approx. U_B-3 V / 0 V
Signal voltage NPN HIGH/LOW	Approx. U_B / ≤ 3 V
Output current I_max.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected
	Overcurrent protected
	Short-circuit protected
Response time	≤ 625 µs
Switching frequency	1,000 Hz

Pin/Wire assignment
Function of pin 4/black (BK)	Digital output, light switching, object present → output Q HIGH
Function of pin 4/black (BK) – detail	The pin 4 function of the sensor can be switched, Additional possible settings via operating mode switch
Function of pin 2/white (WH)	Digital output, dark switching, object present → output Ǭ LOW
Function of pin 2/white (WH) – detail	The pin 2 function of the sensor can be switched, Additional possible settings via operating mode switch

Mechanical data

Housing

Rectangular

Dimensions (W x H x D)

12 mm x 31.5 mm x 21 mm

Connection

Cable, 4-wire, 2 m

Connection detail
Deep-freeze property	Do not bend below 0 °C
Conductor size	0.14 mm²
Cable diameter	Ø 8 mm
Length of cable (L)	2 m

Material
Housing	Plastic, ABS
Front screen	Plastic, PMMA
Cable	PVC

Weight

Approx. 60 g

Ambient data

Enclosure rating	IP67 (EN 60529)
Ambient operating temperature	–20 °C … +50 °C
Ambient temperature, storage	–40 °C … +70 °C
Typ. Ambient light immunity	Sunlight: ≤ 13,000 lx
Shock resistance	30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance	10 Hz … 55 Hz (Amplitude 0.5 mm, 3×30 min (EN60068-2-6))
Air humidity	35 % … 95 %, Relative humidity (no condensation)
Electromagnetic compatibility (EMC)	EN 60947-5-2
UL File No.	NRKH.E348498 & NRKH7.E348498

Classifications

ECLASS 5.0	27270904
ECLASS 5.1.4	27270904
ECLASS 6.0	27270904
ECLASS 6.2	27270904
ECLASS 7.0	27270904
ECLASS 8.0	27270904
ECLASS 8.1	27270904
ECLASS 9.0	27270904
ECLASS 10.0	27270904
ECLASS 11.0	27270904
ECLASS 12.0	27270903
ETIM 5.0	EC002719
ETIM 6.0	EC002719
ETIM 7.0	EC002719
ETIM 8.0	EC002719
UNSPSC 16.0901	39121528

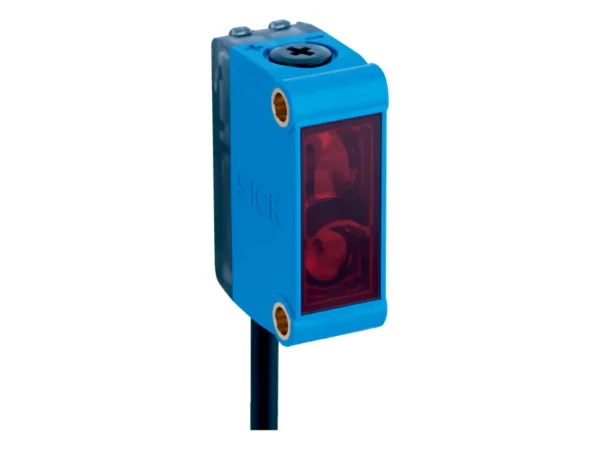

GTB6L-F2211 – 1107210
