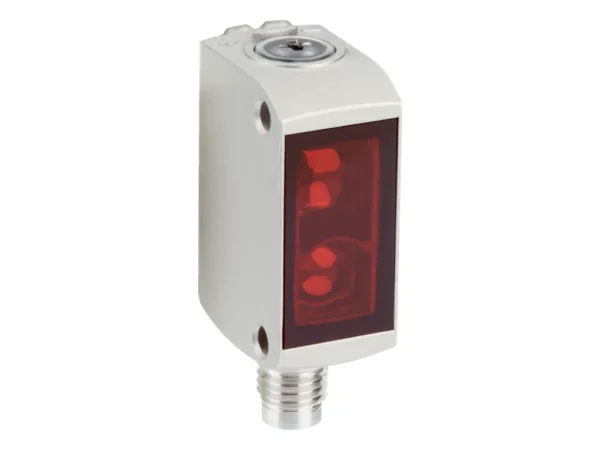

Home Fotoelektrik Sensörler GTB6-P3431V – 1097497 🔍 GTB6-P3431V – 1097497 ✉ Teklif Al Teklif Al Stok kodu: 1097497 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 5 mm … 400 mm Sensing range 50 mm … 220 mm Polarisation filters No Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 6 mm (100 mm) Key LED figures Wave length 650 nm Adjustment Mechanical spindle, 5 turns Special applications Hygienic and washdown zones Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ± 10 % Current consumption 32 mA Protection class III Digital output Type PNP Switching mode Light switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 1.25 ms Switching frequency 500 Hz Circuit protection A B D Mechanical data Housing Rectangular Dimensions (W x H x D) 15 mm x 44 mm x 22 mm Connection Connector M8, 3-pin Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Weight 40 g Ambient data Enclosure rating IP67 IP69K Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 30 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA1-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Sensing range max. 5 mm … 400 mm Sensing range 50 mm … 220 mm Polarisation filters No Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 6 mm (100 mm) Key LED figures Wave length 650 nm Adjustment Mechanical spindle, 5 turns Special applications Hygienic and washdown zones Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ± 10 % Current consumption 32 mA Protection class III Digital output Type PNP Switching mode Light switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 1.25 ms Switching frequency 500 Hz Circuit protection A B D Mechanical data Housing Rectangular Dimensions (W x H x D) 15 mm x 44 mm x 22 mm Connection Connector M8, 3-pin Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Weight 40 g Ambient data Enclosure rating IP67 IP69K Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270904 ECLASS 5.1.4 27270904 ECLASS 6.0 27270904 ECLASS 6.2 27270904 ECLASS 7.0 27270904 ECLASS 8.0 27270904 ECLASS 8.1 27270904 ECLASS 9.0 27270904 ECLASS 10.0 27270904 ECLASS 11.0 27270904 ECLASS 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
