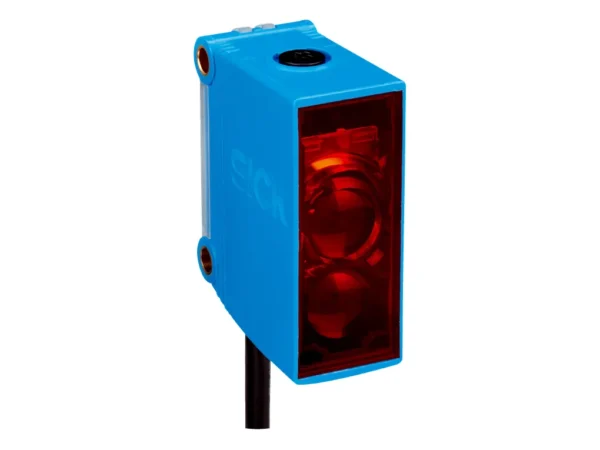

Home Fotoelektrik Sensörler GTB10-F7431S14 – 1107223 🔍 GTB10-F7431S14 – 1107223 ✉ Teklif Al Teklif Al Stok kodu: 1107223 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 20 mm … 1,600 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 8 mm (700 mm) Wave length 625 nm Adjustment Potentiometer, 5 turns Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Output function Complementary Switching mode Light switching Output current Imax. ≤ 100 mA Response time ≤ 2,500 µs Switching frequency 200 Hz Connection type Cable with M12 male connector, 4-pin, 300 mm Cable material PVC Circuit protection A B C D Protection class III Weight 35 g Housing material Plastic, ABS/PMMA Enclosure rating IP67 Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –30 °C … +60 °C Ambient temperature, storage –40 °C … +70 °C UL File No. NRKH.E348498 & NRKH7.E348498 More standards UL325 10) Classifications eCl@ss 5.0 27270904 eCl@ss 5.1.4 27270904 eCl@ss 6.0 27270904 eCl@ss 6.2 27270904 eCl@ss 7.0 27270904 eCl@ss 8.0 27270904 eCl@ss 8.1 27270904 eCl@ss 9.0 27270904 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-U2MPA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git PHOTOSWITCH Photoelectric Sensor, 1m (3.3ft), Clear Object Detection, Source (PNP), 4-pin DC Micro QD – 42CSS-C2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Source, Infrared, Not Adjustable Sensitivity, Transmitted Beam Source, DC Transmitted Beam Emitter, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 3 mm Minimum Sensing Distance, 16000 mm Op – 42CA-E1EZB1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 20 mm … 1,600 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 8 mm (700 mm) Wave length 625 nm Adjustment Potentiometer, 5 turns Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Output function Complementary Switching mode Light switching Output current Imax. ≤ 100 mA Response time ≤ 2,500 µs Switching frequency 200 Hz Connection type Cable with M12 male connector, 4-pin, 300 mm Cable material PVC Circuit protection A B C D Protection class III Weight 35 g Housing material Plastic, ABS/PMMA Enclosure rating IP67 Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –30 °C … +60 °C Ambient temperature, storage –40 °C … +70 °C UL File No. NRKH.E348498 & NRKH7.E348498 More standards UL325 10) Classifications eCl@ss 5.0 27270904 eCl@ss 5.1.4 27270904 eCl@ss 6.0 27270904 eCl@ss 6.2 27270904 eCl@ss 7.0 27270904 eCl@ss 8.0 27270904 eCl@ss 8.1 27270904 eCl@ss 9.0 27270904 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC002719 ETIM 6.0 EC002719 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
