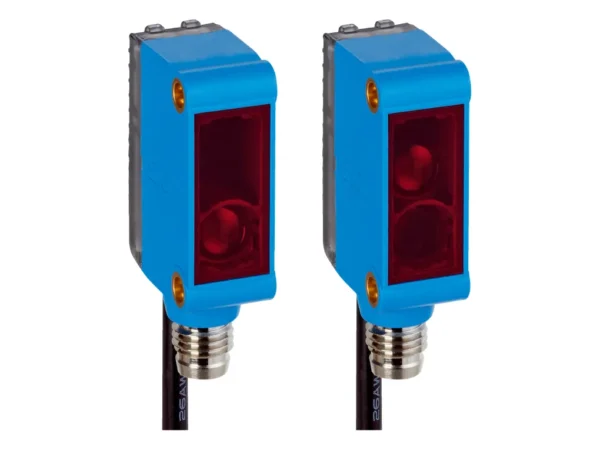

Home Fotoelektrik Sensörler GSE6-C0021K01 – 1103772 🔍 GSE6-C0021K01 – 1103772 ✉ Teklif Al Teklif Al Stok kodu: 1103772 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Device version FlexChain Guest Sensor principle Sender/receiver Light grid system Mechanics/electronics Light source PinPoint LED, Infrared light Light spot size (distance) Ø 375 mm (12 m) Wave length 850 nm Supply voltage Vs 12 V, via FlexChain (host) Adjustment Cable (Sensitivity) Via FlexChain (host) Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Connection type Male connector M8, 4-pin, cable with M8 female connector, 4-pin, angled, 0.15 m Housing material Plastic (ABS) Enclosure rating IP65, IP67 Protection class III Weight Approx. 23 g Performance Operating range 15 m Ambient data Shock resistance Single shocks 30 g, 11 ms 6 per axle / continuous shocks 25 g, 6 ms, 1,000 per axis Vibration resistance Sinusoidal oscillation 20-2,000 Hz 10 g, 3 h per axle EMC EN 61000-6-2, EN 61000-6-3 Ambient light immunity Direct: 40,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-U2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 80 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA3-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Device version FlexChain Guest Sensor principle Sender/receiver Light grid system Mechanics/electronics Light source PinPoint LED, Infrared light Light spot size (distance) Ø 375 mm (12 m) Wave length 850 nm Supply voltage Vs 12 V, via FlexChain (host) Adjustment Cable (Sensitivity) Via FlexChain (host) Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Connection type Male connector M8, 4-pin, cable with M8 female connector, 4-pin, angled, 0.15 m Housing material Plastic (ABS) Enclosure rating IP65, IP67 Protection class III Weight Approx. 23 g Performance Operating range 15 m Ambient data Shock resistance Single shocks 30 g, 11 ms 6 per axle / continuous shocks 25 g, 6 ms, 1,000 per axis Vibration resistance Sinusoidal oscillation 20-2,000 Hz 10 g, 3 h per axle EMC EN 61000-6-2, EN 61000-6-3 Ambient light immunity Direct: 40,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528
