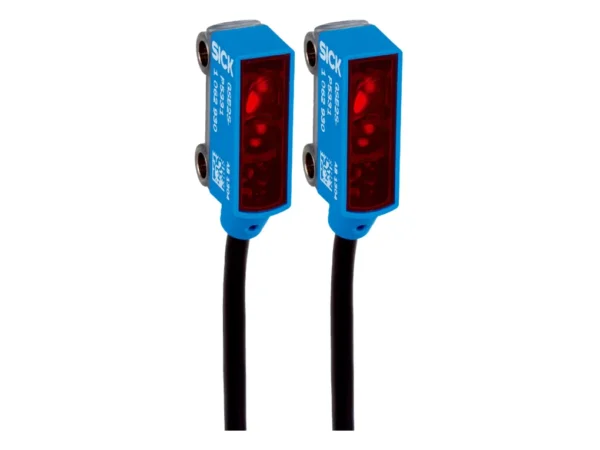

Home Fotoelektrik Sensörler GSE2S-P2311 – 1121697 🔍 GSE2S-P2311 – 1121697 ✉ Teklif Al Teklif Al Stok kodu: 1121697 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 7.7 mm x 21.8 mm x 13.5 mm Housing design (light emission) Rectangular Sensing range max. 0 m … 2 m Sensing range 0 m … 1.5 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 23 mm (500 mm) Wave length 640 nm Adjustment None Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Switching mode Light/dark switching Output current Imax. ≤ 50 mA Response time < 0.6 ms Switching frequency 800 Hz Connection type Cable, 4-wire, 2 m Cable material PVC Cable diameter Ø 3 mm Circuit protection A C D Weight 73.8 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C … +50 °C Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528 İlgili ürünler 18 mm Cylindrical Sensor, 18 mm Cylindrical, Transmitted Beam Source, Infrared, Not Adjustable Sensitivity, Transmitted Beam Source, DC Transmitted Beam Emitter, 4 Pin Micro Quick Disconnect, Plastic, 18mm Mount, 3 mm Minimum Sensing Distance, 16000 mm Op – 42CA-E1EZB1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, PNP Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LPA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Through-beam photoelectric sensor Dimensions (W x H x D) 7.7 mm x 21.8 mm x 13.5 mm Housing design (light emission) Rectangular Sensing range max. 0 m … 2 m Sensing range 0 m … 1.5 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 23 mm (500 mm) Wave length 640 nm Adjustment None Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Switching mode Light/dark switching Output current Imax. ≤ 50 mA Response time < 0.6 ms Switching frequency 800 Hz Connection type Cable, 4-wire, 2 m Cable material PVC Cable diameter Ø 3 mm Circuit protection A C D Weight 73.8 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C … +50 °C Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 Classifications ECLASS 5.0 27270901 ECLASS 5.1.4 27270901 ECLASS 6.0 27270901 ECLASS 6.2 27270901 ECLASS 7.0 27270901 ECLASS 8.0 27270901 ECLASS 8.1 27270901 ECLASS 9.0 27270901 ECLASS 10.0 27270901 ECLASS 11.0 27270901 ECLASS 12.0 27270901 ETIM 5.0 EC002716 ETIM 6.0 EC002716 ETIM 7.0 EC002716 ETIM 8.0 EC002716 UNSPSC 16.0901 39121528
