Name: SICK 1104721 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1104721
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Energetic

Dimensions (W x H x D)

18 mm x 18 mm x 71.5 mm

Housing design (light emission)

Cylindrical

Thread diameter (housing)

M18 x 1

Optical axis

Axial

Sensing range max.

5 mm … 1,000 mm

Sensing range

10 mm … 800 mm

Type of light

Infrared light

Light source

LED

Light spot size (distance)

Ø 42 mm (800 mm)

Wave length

850 nm

Adjustment

Potentiometer

Indication
LED green	Operating indicator Static on: power on
LED yellow	Status of received light beam Static on: object present Static off: object not present

Mechanics/electronics

Supply voltage	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	30 mA
Switching output	PNP
Output function	Complementary
Switching mode	Light/dark switching
Signal voltage PNP HIGH/LOW	V_S – (≤ 3 V) / approx. 0 V
Output current I_max.	≤ 100 mA
Response time	< 1,000 µs
Switching frequency	500 Hz
Connection type	Cable, 4-wire, 5 m
Cable material	PVC
Circuit protection	A B D
Protection class	III
Housing material	Plastic, ABS
Optics material	Plastic, PMMA
Enclosure rating	IP67
Items supplied	Fastening nuts (2 x)
Electromagnetic compatibility (EMC)	EN 60947-5-2
Ambient operating temperature	–25 °C … +55 °C ¹⁰⁾
Ambient temperature, storage	–40 °C … +70 °C
UL File No.	E348498

Classifications

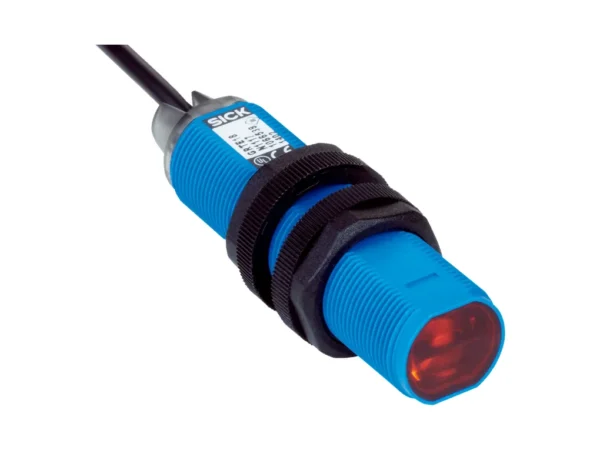

GRTE18-P1277 – 1104721
