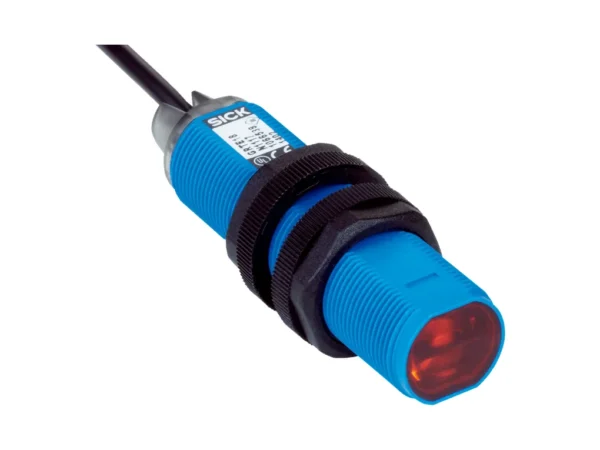

Home Fotoelektrik Sensörler GRTE18-P1237 – 1121486 🔍 GRTE18-P1237 – 1121486 ✉ Teklif Al Teklif Al Stok kodu: 1121486 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Dimensions (W x H x D) 18 mm x 18 mm x 71.5 mm Housing design (light emission) Cylindrical Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 3 mm … 350 mm Sensing range 3 mm … 250 mm Type of light Infrared light Light source LED Light spot size (distance) Ø 150 mm (250 mm) Wave length 850 nm Adjustment Potentiometer Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Switching output PNP Output function Complementary Switching mode Light/dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 1,000 µs Switching frequency 500 Hz Connection type Cable, 4-wire, 5 m Cable material PVC Circuit protection A B D Protection class III Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Fastening nuts (2 x) Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –25 °C … +55 °C 10) Ambient temperature, storage –40 °C … +70 °C UL File No. E348498 Classifications eCl@ss 5.0 27270903 eCl@ss 5.1.4 27270903 eCl@ss 6.0 27270903 eCl@ss 6.2 27270903 eCl@ss 7.0 27270903 eCl@ss 8.0 27270903 eCl@ss 8.1 27270903 eCl@ss 9.0 27270903 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC001821 ETIM 6.0 EC001821 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528 İlgili ürünler PHOTOSWITCH Photoelectric Sensor, 1m (3.3ft), Clear Object Detection, Source (PNP), 4-pin DC Micro QD – 42CSS-C2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 80 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA3-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensors – 42AF-R1CHB1-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric proximity sensor Functional principle detail Energetic Dimensions (W x H x D) 18 mm x 18 mm x 71.5 mm Housing design (light emission) Cylindrical Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 3 mm … 350 mm Sensing range 3 mm … 250 mm Type of light Infrared light Light source LED Light spot size (distance) Ø 150 mm (250 mm) Wave length 850 nm Adjustment Potentiometer Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object presentStatic off: object not present Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Switching output PNP Output function Complementary Switching mode Light/dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 1,000 µs Switching frequency 500 Hz Connection type Cable, 4-wire, 5 m Cable material PVC Circuit protection A B D Protection class III Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Fastening nuts (2 x) Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –25 °C … +55 °C 10) Ambient temperature, storage –40 °C … +70 °C UL File No. E348498 Classifications eCl@ss 5.0 27270903 eCl@ss 5.1.4 27270903 eCl@ss 6.0 27270903 eCl@ss 6.2 27270903 eCl@ss 7.0 27270903 eCl@ss 8.0 27270903 eCl@ss 8.1 27270903 eCl@ss 9.0 27270903 eCl@ss 10.0 27270904 eCl@ss 11.0 27270904 eCl@ss 12.0 27270903 ETIM 5.0 EC001821 ETIM 6.0 EC001821 ETIM 7.0 EC002719 ETIM 8.0 EC002719 UNSPSC 16.0901 39121528
