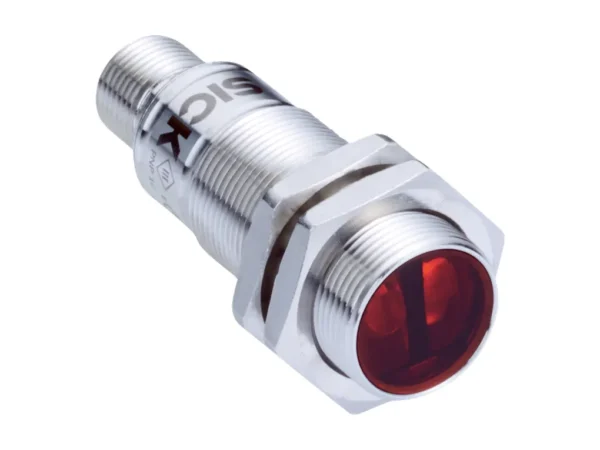

Home Fotoelektrik Sensörler GRL18S-K2431V – 1106933 🔍 GRL18S-K2431V – 1106933 ✉ Teklif Al Teklif Al Stok kodu: 1106933 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 18 mm x 18 mm x 55.9 mm Housing design (light emission) Cylindrical Housing length 55.9 mm Thread length 31.7 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.03 m … 7.2 m Sensing range 0.06 m … 6 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 175 mm (7 m) Wave length 650 nm Adjustment None Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object not presentStatic off: object present Special applications Hygienic and washdown zones Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Switching output PNP Output function Complementary Switching mode Light/dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 500 µs Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Circuit protection A B D Protection class III Weight 45 g Polarisation filter ✔ Housing material Stainless steel, Stainless steel V4A (1.4404, 316L) Optics material Plastic, PMMA Tightening torque, max. 90 Nm Enclosure rating IP67 IP68 10) IP69K 11) Items supplied Fastening nuts (2 x) Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –25 °C … +55 °C 12) Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications eCl@ss 5.0 27270902 eCl@ss 5.1.4 27270902 eCl@ss 6.0 27270902 eCl@ss 6.2 27270902 eCl@ss 7.0 27270902 eCl@ss 8.0 27270902 eCl@ss 8.1 27270902 eCl@ss 9.0 27270902 eCl@ss 10.0 27270902 eCl@ss 11.0 27270902 eCl@ss 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git PHOTOSWITCH Photoelectric Sensor, 1m (3.3ft), Clear Object Detection, Source (PNP), 4-pin DC Micro QD – 42CSS-C2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Accessory, Series 4000 Photoelectric, Mounting Bracket, Right Angle – 60-1479ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 18 mm x 18 mm x 55.9 mm Housing design (light emission) Cylindrical Housing length 55.9 mm Thread length 31.7 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.03 m … 7.2 m Sensing range 0.06 m … 6 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 175 mm (7 m) Wave length 650 nm Adjustment None Indication LED green Operating indicatorStatic on: power on LED yellow Status of received light beamStatic on: object not presentStatic off: object present Special applications Hygienic and washdown zones Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 30 mA Switching output PNP Output function Complementary Switching mode Light/dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 500 µs Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin Circuit protection A B D Protection class III Weight 45 g Polarisation filter ✔ Housing material Stainless steel, Stainless steel V4A (1.4404, 316L) Optics material Plastic, PMMA Tightening torque, max. 90 Nm Enclosure rating IP67 IP68 10) IP69K 11) Items supplied Fastening nuts (2 x) Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –25 °C … +55 °C 12) Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications eCl@ss 5.0 27270902 eCl@ss 5.1.4 27270902 eCl@ss 6.0 27270902 eCl@ss 6.2 27270902 eCl@ss 7.0 27270902 eCl@ss 8.0 27270902 eCl@ss 8.1 27270902 eCl@ss 9.0 27270902 eCl@ss 10.0 27270902 eCl@ss 11.0 27270902 eCl@ss 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528
