Name: SICK 1116319 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1116319
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Optical focus	100 mm fixed focus
Light source	Internal lighting, 2 x LED, Visible, Amber, 590 nm, ± 80 nm
LED class	Free group (IEC 62471:2006-07, EN 62471:2008-09)
Reading distance	≤ 100 mm
Overrun speed	≤ 3.5 m/s
Repeatability (position)	± 0.1 mm (3 sigma)
Angular accuracy (azimuth)	± 0.1° (3 sigma)

Mechanics/electronics

Performance

Readable code structures	2D
2D code types	Data Matrix ECC200, QR code
Code qualification	On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004

Interfaces

CANopen	✔
Data transmission rate	50/125/250/500/1,000 kbit/s

Optical indicators

2 LEDs (1 x power supply, 1 x code read out)

Ambient data

Electromagnetic compatibility (EMC)	EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005-08 / IEC 61000-6-3:2006+AMD1:2010
Vibration resistance	EN 60068-2-6:2008-02 / EN 60068-2-27:2010-02
Ambient operating temperature	0 °C … +50 °C
Storage temperature	–25 °C … +75 °C
Permissible relative humidity	90 %, Non-condensing

Classifications

Connection/Pin assignment

Connection type

Connector M12, 5-pin, A-coded

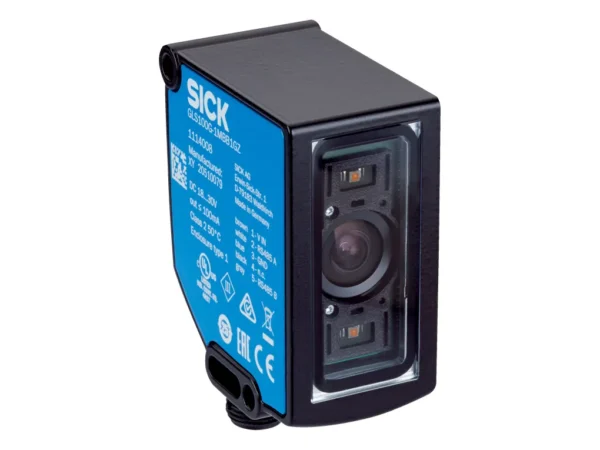

GLS100G-1MBB1FZ – 1116319
