Tecnichal data

Features

Functional principle

Photoelectric retro-reflective sensor

Sensing range
Sensing range min.	0.08 m
Sensing range max.	12 m
Maximum distance range from reflector to sensor (operating reserve 1)	0.08 m … 12 m
Recommended distance range from reflector to sensor (operating reserve 2)	0.08 m … 10 m
Reference reflector	Reflector P250F
Recommended sensing range for the best performance	0.08 m … 4.2 m

Polarisation filters

Yes

Emitted beam
Light source	Laser
Type of light	Visible red light
Shape of light spot	Point-shaped
Light spot size (distance)	Ø 3.5 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)	< +/- 1.5° (at Ta = +23 °C)

Key laser figures
Normative reference	IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11
Laser class	1
Wave length	680 nm
Pulse duration	2 µs
Maximum pulse power	≤ 11.9 mW
Average service life	100,000 h at T_a = +25 °C

Smallest detectable object (MDO) typ.
	3.5 mm (at 1 m distance (object with 90% remission (corresponds on standard white DIN 5033)))

Adjustment
Potentiometer	For setting the sensing range
Operating mode switch	For inverting the switching function (light/dark switching)

Indication
LED green	Operating indicator Static on: power on
LED yellow	Status of received light beam Static on: object not present Static off: object present

Items supplied

Reflector P250F, Stainless steel mounting bracket (1.4301/304) BEF-W100-A

Safety-related parameters

MTTF_D	1,005 years
DC_avg	0 %
T_M (mission time)	10 years (EN 60825-1)

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

< 5 V_pp

Usage category

DC-13 (According to EN 60947-5-2)

Current consumption

≤ 20 mA, without load. At U_B = 24 V

Protection class

III

Digital output
Number	2 (Complementary)
Type	NPN
Signal voltage NPN HIGH/LOW	Approx. U_B / ≤ 3 V
Output current I_max.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected
	Overcurrent protected
	Short-circuit protected
Response time	≤ 625 µs
Switching frequency	1,000 Hz

Pin/Wire assignment
Function of pin 4/black (BK)	Digital output, light switching, object present → output Q HIGH
Function of pin 4/black (BK) – detail	The pin 4 function of the sensor can be switched, Additional possible settings via operating mode switch
Function of pin 2/white (WH)	Digital output, dark switching, object present → output Ǭ LOW
Function of pin 2/white (WH) – detail	The pin 2 function of the sensor can be switched, Additional possible settings via operating mode switch

Mechanical data

Housing

Rectangular

Dimensions (W x H x D)

12 mm x 31.5 mm x 21 mm

Connection

Cable, 4-wire, 2 m

Connection detail
Deep-freeze property	Do not bend below 0 °C
Conductor size	0.14 mm²
Cable diameter	Ø 8 mm
Length of cable (L)	2 m

Material
Housing	Plastic, ABS
Front screen	Plastic, PMMA
Cable	PVC

Weight

Approx. 60 g

Ambient data

Enclosure rating	IP67 (EN 60529)
Ambient operating temperature	–20 °C … +50 °C
Ambient temperature, storage	–40 °C … +70 °C
Typ. Ambient light immunity	Sunlight: ≤ 13,000 lx
Shock resistance	30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance	10 Hz … 55 Hz (Amplitude 0.5 mm, 3×30 min (EN60068-2-6))
Air humidity	35 % … 95 %, Relative humidity (no condensation)
Electromagnetic compatibility (EMC)	EN 60947-5-2
UL File No.	NRKH.E348498 & NRKH7.E348498

Classifications

ECLASS 5.0	27270902
ECLASS 5.1.4	27270902
ECLASS 6.0	27270902
ECLASS 6.2	27270902
ECLASS 7.0	27270902
ECLASS 8.0	27270902
ECLASS 8.1	27270902
ECLASS 9.0	27270902
ECLASS 10.0	27270902
ECLASS 11.0	27270902
ECLASS 12.0	27270902
ETIM 5.0	EC002717
ETIM 6.0	EC002717
ETIM 7.0	EC002717
ETIM 8.0	EC002717
UNSPSC 16.0901	39121528

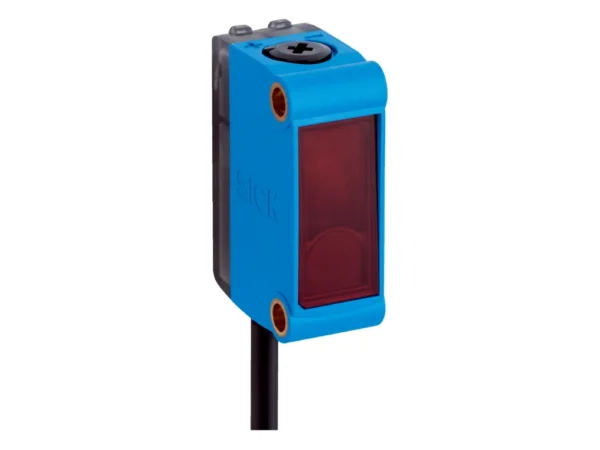

GL6L-E2212 – 1115581
