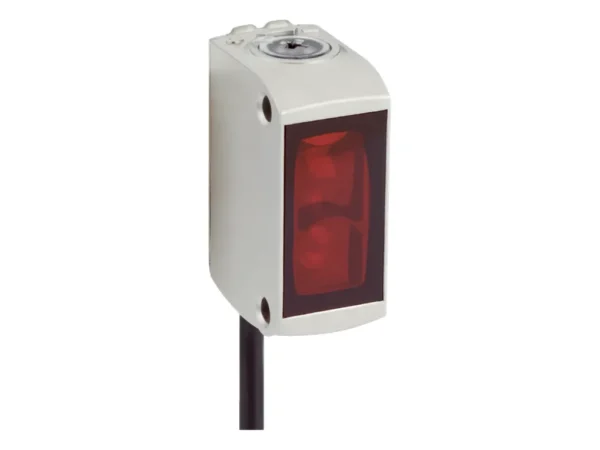

Home Fotoelektrik Sensörler GL6-P7411V – 1104194 🔍 GL6-P7411V – 1104194 ✉ Teklif Al Teklif Al Stok kodu: 1104194 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Sensing range max. 0.03 m … 6 m Sensing range 0.07 m … 5 m Polarisation filters Yes Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 8 mm (350 mm) Key LED figures Wave length 650 nm Adjustment Potentiometer, 270° Special applications Hygienic and washdown zones Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ± 10 % Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 625 µs Switching frequency 1,000 Hz Circuit protection A B D Mechanical data Housing Rectangular Dimensions (W x H x D) 15 mm x 44 mm x 22 mm Connection Cable with M12 male connector, 4-pin Connection detail Length of cable (L) 300 mm Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Cable PVC Weight 70 g Ambient data Enclosure rating IP67 IP69K Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 İlgili ürünler Endüstriyel bağlantı kablosu – 42CA-P2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 30 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA1-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, PNP Output, 120 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LPA4-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Sensing range max. 0.03 m … 6 m Sensing range 0.07 m … 5 m Polarisation filters Yes Emitted beam Light source PinPoint LED Type of light Visible red light Light spot size (distance) Ø 8 mm (350 mm) Key LED figures Wave length 650 nm Adjustment Potentiometer, 270° Special applications Hygienic and washdown zones Electrical data Supply voltage UB 10 V DC … 30 V DC Ripple ± 10 % Current consumption 30 mA Protection class III Digital output Type PNP Switching mode Dark switching Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V Output current Imax. ≤ 100 mA Response time < 625 µs Switching frequency 1,000 Hz Circuit protection A B D Mechanical data Housing Rectangular Dimensions (W x H x D) 15 mm x 44 mm x 22 mm Connection Cable with M12 male connector, 4-pin Connection detail Length of cable (L) 300 mm Material Housing Stainless steel, Stainless steel V4A (1.4404, 316L) Front screen Plastic, PMMA Cable PVC Weight 70 g Ambient data Enclosure rating IP67 IP69K Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –30 °C … +75 °C UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528
