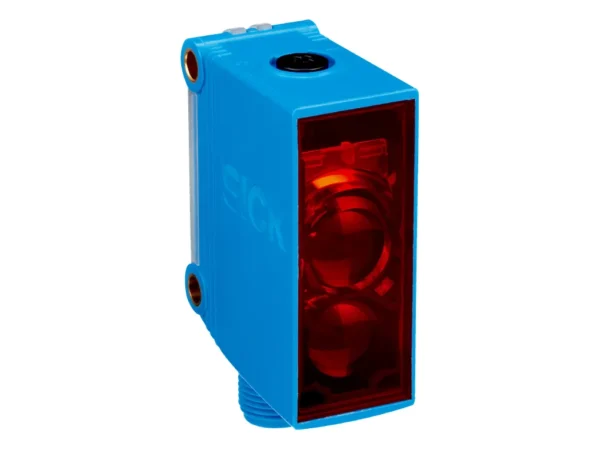

Home Fotoelektrik Sensörler GL10-F4633S12 – 1102891 🔍 GL10-F4633S12 – 1102891 ✉ Teklif Al Teklif Al Stok kodu: 1102891 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 0.15 m … 17 m 0.15 m … 12.5 m Sensing range 0.15 m … 14 m 0.15 m … 10.5 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 58 mm (5 m) Wave length 625 nm Adjustment Potentiometer, 270° Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Output function Complementary Switching mode Light switching Output current Imax. ≤ 100 mA Response time ≤ 1,250 µs Switching frequency 400 Hz Connection type Male connector M12, 4-pin Circuit protection A B C D Protection class III Weight 35 g Polarisation filter ✔ Housing material Plastic, ABS/PMMA Enclosure rating IP67 Items supplied Reflector P250 Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –30 °C … +60 °C Ambient temperature, storage –40 °C … +70 °C UL File No. NRKH.E348498 & NRKH7.E348498 More standards UL325 Safety-related parameters MTTFD 1,505 years DCavg 0% TM (mission time) 20 years Classifications eCl@ss 5.0 27270902 eCl@ss 5.1.4 27270902 eCl@ss 6.0 27270902 eCl@ss 6.2 27270902 eCl@ss 7.0 27270902 eCl@ss 8.0 27270902 eCl@ss 8.1 27270902 eCl@ss 9.0 27270902 eCl@ss 10.0 27270902 eCl@ss 11.0 27270902 eCl@ss 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 50 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA2-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-P2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MPA-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Dual lens Dimensions (W x H x D) 20 mm x 50 mm x 39 mm Housing design (light emission) Rectangular Sensing range max. 0.15 m … 17 m 0.15 m … 12.5 m Sensing range 0.15 m … 14 m 0.15 m … 10.5 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 58 mm (5 m) Wave length 625 nm Adjustment Potentiometer, 270° Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 20 mA Switching output PNP Output function Complementary Switching mode Light switching Output current Imax. ≤ 100 mA Response time ≤ 1,250 µs Switching frequency 400 Hz Connection type Male connector M12, 4-pin Circuit protection A B C D Protection class III Weight 35 g Polarisation filter ✔ Housing material Plastic, ABS/PMMA Enclosure rating IP67 Items supplied Reflector P250 Electromagnetic compatibility (EMC) EN 60947-5-2 Ambient operating temperature –30 °C … +60 °C Ambient temperature, storage –40 °C … +70 °C UL File No. NRKH.E348498 & NRKH7.E348498 More standards UL325 Safety-related parameters MTTFD 1,505 years DCavg 0% TM (mission time) 20 years Classifications eCl@ss 5.0 27270902 eCl@ss 5.1.4 27270902 eCl@ss 6.0 27270902 eCl@ss 6.2 27270902 eCl@ss 7.0 27270902 eCl@ss 8.0 27270902 eCl@ss 8.1 27270902 eCl@ss 9.0 27270902 eCl@ss 10.0 27270902 eCl@ss 11.0 27270902 eCl@ss 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528
