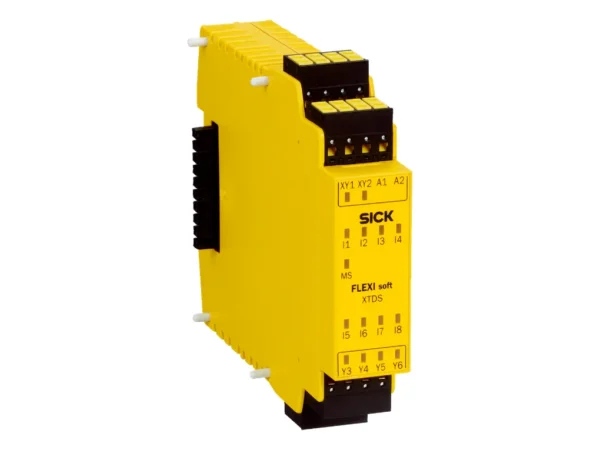

Home Emniyet Kontrol Cihazları FX3-XTDS84012 – 1112301 🔍 FX3-XTDS84012 – 1112301 ✉ Teklif Al Teklif Al Stok kodu: 1112301 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module I/O module Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.4 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Flexi Loop-compatible ✔ Interfaces Number of safety inputs 8 Number of test outputs 0-2 Number of non-safe outputs 4-6 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.5 W Inputs Input voltage HIGH 13 V DC … 30 V DC Input voltage LOW –5 V DC … 5 V DC Input current HIGH 2.4 mA … 3.8 mA Input current LOW –2.5 mA … 2.1 mA Test outputs Voltage supply Via FLEXBUS+ Type of output PNP semiconductors, short-circuit protected Test pulse generator 2 Output voltage HIGH 15 V DC … 30 V DC Output current ≤ 120 mA Outputs Voltage supply Via A1, A2 Supply voltage 24 V DC (16.8 V DC … 30 V DC) Type of supply voltage PELV or SELV Type of output PNP semiconductors, short-circuit protected Output voltage HIGH 16 V DC … 30 V DC Output current ≤ 500 mA Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 139 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX3-MOC100010 – 1112300SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-STIO68012 – 1112297SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git RLY3-OSSD300 – 1099969SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git UE410-GU4 – 1094339SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module I/O module Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.4 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Flexi Loop-compatible ✔ Interfaces Number of safety inputs 8 Number of test outputs 0-2 Number of non-safe outputs 4-6 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.5 W Inputs Input voltage HIGH 13 V DC … 30 V DC Input voltage LOW –5 V DC … 5 V DC Input current HIGH 2.4 mA … 3.8 mA Input current LOW –2.5 mA … 2.1 mA Test outputs Voltage supply Via FLEXBUS+ Type of output PNP semiconductors, short-circuit protected Test pulse generator 2 Output voltage HIGH 15 V DC … 30 V DC Output current ≤ 120 mA Outputs Voltage supply Via A1, A2 Supply voltage 24 V DC (16.8 V DC … 30 V DC) Type of supply voltage PELV or SELV Type of output PNP semiconductors, short-circuit protected Output voltage HIGH 16 V DC … 30 V DC Output current ≤ 500 mA Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 139 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
