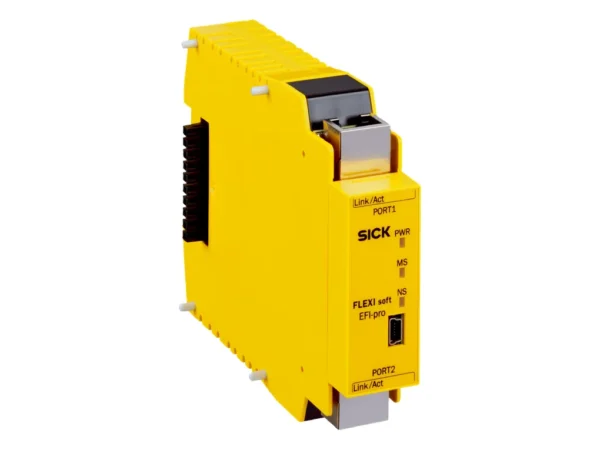

Home Emniyet Kontrol Cihazları FX3-GEPR00010 – 1112296 🔍 FX3-GEPR00010 – 1112296 ✉ Teklif Al Teklif Al Stok kodu: 1112296 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Gateway Fieldbus, industrial network EFI-pro, EtherNet/IP™ CIP Safety™ Configuration method Via software (Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.3 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Interfaces Fieldbus, industrial network EFI-pro, EtherNet/IP™ CIP Safety™ Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-TX autosensing RPI (requested packet interval) Producing 4 ms … 500 ms, multiple of 4 ms Consuming 4 ms … 500 ms, multiple of 1 ms Number of data bytes RX ≤ 48 Byte TX ≤ 50 Byte Number of safe connections EFI-pro/EtherNet/IP™ CIP Safety™ Consuming ≤ 10 EFI-pro/EtherNet/IP™ CIP Safety™ Producing ≤ 10 Connection type 2 x female connector, RJ-45 Configuration and diagnostics interface Mini-USB Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 3.5 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 135 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX3-ANA020012 – 1112299SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLA-DIAG00001 – 1061714SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git RLY3-EMSS300 – 1099973SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FLN-OSSD1000105 – 1061709SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git
Tecnichal data Features Module Gateway Fieldbus, industrial network EFI-pro, EtherNet/IP™ CIP Safety™ Configuration method Via software (Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.3 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Interfaces Fieldbus, industrial network EFI-pro, EtherNet/IP™ CIP Safety™ Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-TX autosensing RPI (requested packet interval) Producing 4 ms … 500 ms, multiple of 4 ms Consuming 4 ms … 500 ms, multiple of 1 ms Number of data bytes RX ≤ 48 Byte TX ≤ 50 Byte Number of safe connections EFI-pro/EtherNet/IP™ CIP Safety™ Consuming ≤ 10 EFI-pro/EtherNet/IP™ CIP Safety™ Producing ≤ 10 Connection type 2 x female connector, RJ-45 Configuration and diagnostics interface Mini-USB Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 3.5 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 135 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
