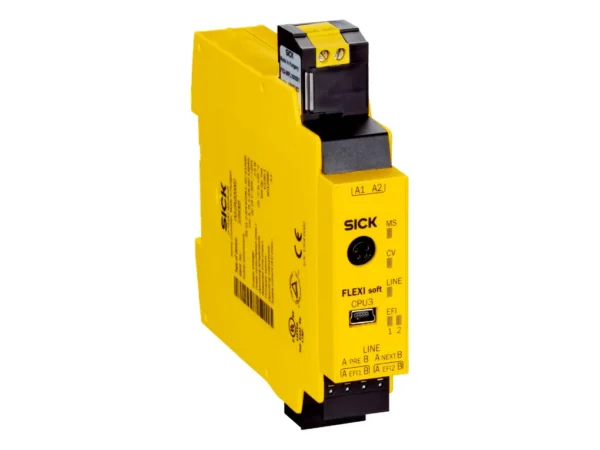

Home Emniyet Kontrol Cihazları FX3-CPU320012 – 1112302 🔍 FX3-CPU320012 – 1112302 ✉ Teklif Al Teklif Al Stok kodu: 1112302 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Main module Configuration method Via software (Flexi Soft Designer) Note The system plug has to be ordered separately. For details, see “Accessories”. Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Items supplied Main module without system plug Terminal plug spring for EFI interface Terminal plug spring for Flexi-Line interface Safety instruction Operating instructions for download Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 1.69 x 10-9 (EN ISO 13849) 0.4 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Safe SICK device communication ✔ Safe networking Flexi Link ✔ Flexi Line ✔ Automatic Configuration Recovery (ACR) ✔ Interfaces System connection System plug Number of EFI interfaces 2 Flexi Line connection ✔ Connection type Plug-in spring terminals Configuration and diagnostics interface RS-232 (M8 female connector, 4-pin) Mini-USB Electrical data Protection class III (EN 61140) Type of voltage supply PELV or SELV Supply voltage VS 24 V DC (16.8 V DC … 30 V DC) Internal power consumption ≤ 2.5 W Overvoltage category II (EN 61131-2) Switch-on time ≤ 18 s Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 133 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX3-MOC100010 – 1112300SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX3-MPL100011 – 1112303SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-EMSS0000105 – 1061711SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FLA-PWRI00001 – 1061715SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git
Tecnichal data Features Module Main module Configuration method Via software (Flexi Soft Designer) Note The system plug has to be ordered separately. For details, see “Accessories”. Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Items supplied Main module without system plug Terminal plug spring for EFI interface Terminal plug spring for Flexi-Line interface Safety instruction Operating instructions for download Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 1.69 x 10-9 (EN ISO 13849) 0.4 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Functions Safe SICK device communication ✔ Safe networking Flexi Link ✔ Flexi Line ✔ Automatic Configuration Recovery (ACR) ✔ Interfaces System connection System plug Number of EFI interfaces 2 Flexi Line connection ✔ Connection type Plug-in spring terminals Configuration and diagnostics interface RS-232 (M8 female connector, 4-pin) Mini-USB Electrical data Protection class III (EN 61140) Type of voltage supply PELV or SELV Supply voltage VS 24 V DC (16.8 V DC … 30 V DC) Internal power consumption ≤ 2.5 W Overvoltage category II (EN 61131-2) Switch-on time ≤ 18 s Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 133 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
