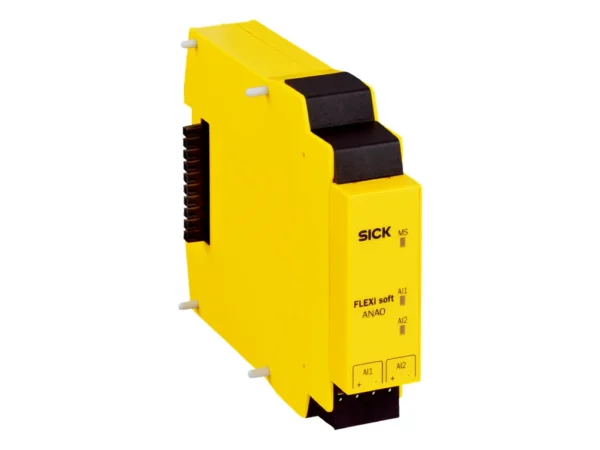

Home Emniyet Kontrol Cihazları FX3-ANA020012 – 1112299 🔍 FX3-ANA020012 – 1112299 ✉ Teklif Al Teklif Al Stok kodu: 1112299 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Analog input module Configuration method Via software (Flexi Soft Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.166 x 10-9 TM (mission time) 20 years (EN ISO 13849-1) Functions Limit value monitoring ✔ Signal range detection ✔ Interfaces Number of safe analog inputs 2 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2 W Analogue inputs Input voltage ≤ 30 V DC Input current ≤ 30 mA Current measuring range 4 mA … 20 mA Current input measuring range 3.5 mA … 20.5 mA Input resistance 50 Ω Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 117 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX0-GPNT00030 FLEXISOFT PNET GATEW.V2 – 1099832SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX3-XTDS84002 – 1061777SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-STIO68002 – 1061778SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-GENT00030 FLEXISOFT EIP GATEW.V2 – 1099830SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module Analog input module Configuration method Via software (Flexi Soft Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 0.166 x 10-9 TM (mission time) 20 years (EN ISO 13849-1) Functions Limit value monitoring ✔ Signal range detection ✔ Interfaces Number of safe analog inputs 2 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2 W Analogue inputs Input voltage ≤ 30 V DC Input current ≤ 30 mA Current measuring range 4 mA … 20 mA Current input measuring range 3.5 mA … 20.5 mA Input resistance 50 Ω Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 117 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
