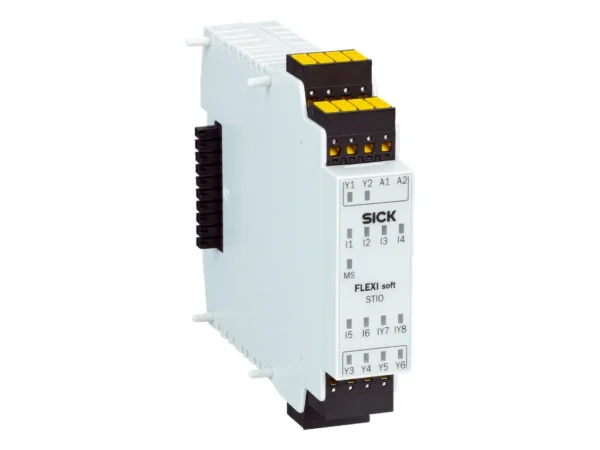

Home Emniyet Kontrol Cihazları FX0-STIO68012 – 1112297 🔍 FX0-STIO68012 – 1112297 ✉ Teklif Al Teklif Al Stok kodu: 1112297 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module I/O module Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Interfaces Number of non-safe inputs 6-8 Number of non-safe outputs 6-8 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.5 W Inputs Input voltage HIGH 13 V DC … 30 V DC Input voltage LOW –5 V DC … 5 V DC Input current HIGH 2.4 mA … 3.8 mA Input current LOW –2.5 mA … 2.1 mA Outputs Voltage supply Via A1, A2 Supply voltage 24 V DC (16.8 V DC … 30 V DC) Type of supply voltage PELV or SELV Type of output PNP semiconductors, short-circuit protected Output voltage HIGH 16 V DC … 30 V DC Output current ≤ 500 mA Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 139 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX3-ANA020012 – 1112299SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-OSSD1000105 – 1061709SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FX3-GEPR00010 – 1112296SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLA-MSTR00001 – 1061713SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git
Tecnichal data Features Module I/O module Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Interfaces Number of non-safe inputs 6-8 Number of non-safe outputs 6-8 Connection type Plug-in spring terminals Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.5 W Inputs Input voltage HIGH 13 V DC … 30 V DC Input voltage LOW –5 V DC … 5 V DC Input current HIGH 2.4 mA … 3.8 mA Input current LOW –2.5 mA … 2.1 mA Outputs Voltage supply Via A1, A2 Supply voltage 24 V DC (16.8 V DC … 30 V DC) Type of supply voltage PELV or SELV Type of output PNP semiconductors, short-circuit protected Output voltage HIGH 16 V DC … 30 V DC Output current ≤ 500 mA Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 139 g (± 5 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
