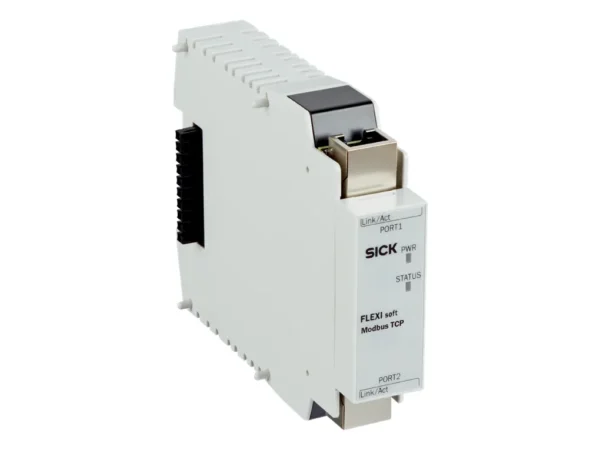

Home Emniyet Kontrol Cihazları FX0-GMOD00010 – 1127717 🔍 FX0-GMOD00010 – 1127717 ✉ Teklif Al Teklif Al Stok kodu: 1127717 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Gateway Fieldbus, industrial network Modbus® TCP Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Interfaces Fieldbus, industrial network Modbus® TCP Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-T autosensing Connection type 2 x female connector, RJ-45 Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2.4 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 125 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler UE410-GU3 – 1072177SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FLN-OSSD1000105 – 1061709SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FX0-STIO68002 – 1061778SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-STIO68012 – 1112297SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module Gateway Fieldbus, industrial network Modbus® TCP Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur). Interfaces Fieldbus, industrial network Modbus® TCP Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-T autosensing Connection type 2 x female connector, RJ-45 Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2.4 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 125 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
