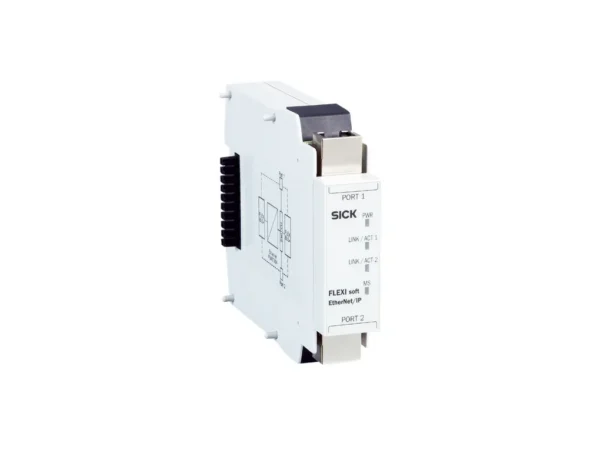

Home Emniyet Kontrol Cihazları FX0-GENT00030 FLEXISOFT EIP GATEW.V2 – 1099830 🔍 FX0-GENT00030 FLEXISOFT EIP GATEW.V2 – 1099830 ✉ Teklif Al Teklif Al Stok kodu: 1099830 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Gateway Fieldbus, industrial network EtherNet/IP™ Configuration method Via software (Flexi Soft Designer) Specialty This is a replacement device with an older firmware for replacing the gateway on existing systems. For new systems, please use gateway 1044072. Firmware V2.11 Interfaces Fieldbus, industrial network EtherNet/IP™ Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-T autosensing Connection type 2 x female connector, RJ-45 Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2.4 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 125 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler FX3-XTDS84002 – 1061777SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-STIO68002 – 1061778SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX0-STIO68012 – 1112297SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX3-MOC100010 – 1112300SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module Gateway Fieldbus, industrial network EtherNet/IP™ Configuration method Via software (Flexi Soft Designer) Specialty This is a replacement device with an older firmware for replacing the gateway on existing systems. For new systems, please use gateway 1044072. Firmware V2.11 Interfaces Fieldbus, industrial network EtherNet/IP™ Integrated Ethernet switch 3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable Data transmission rate 10 Mbit/s, 10Base-T 100 Mbit/s, 100Base-T autosensing Connection type 2 x female connector, RJ-45 Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 2.4 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm Weight 125 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
