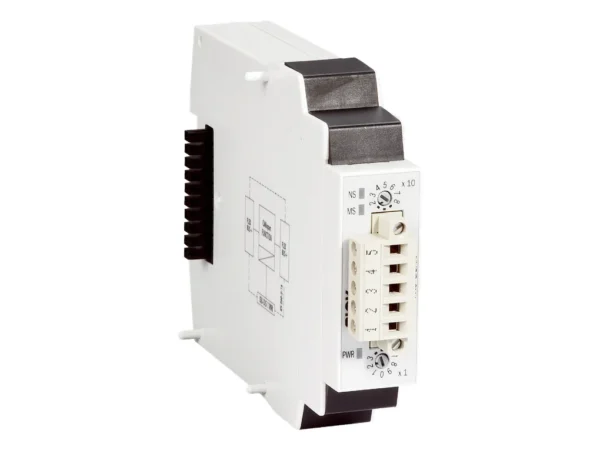

Home Emniyet Kontrol Cihazları FX0-GCAN00010S25 – 1118412 🔍 FX0-GCAN00010S25 – 1118412 ✉ Teklif Al Teklif Al Stok kodu: 1118412 Kategoriler: Emniyet Kontrol Cihazları Marka: SICK Açıklama Tecnichal data Features Module Gateway Fieldbus, industrial network CANopen Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur)., Special device without terminal strip Interfaces Fieldbus, industrial network CANopen Data transmission rate ≤ 1,000 kbit/s Connection type 1 x female connector, Open Style, 5-pin Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.6 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 131 mm Weight 150 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705 İlgili ürünler UE410-GU4 – 1094339SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git FX3-GEPR00010 – 1112296SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git RLY3-EMSS300 – 1099973SICKEmniyet Kontrol Cihazları ₺850,00 Ürüne Git FX3-XTDS84002 – 1061777SICKEmniyet Kontrol Cihazları ₺9.500,00 Ürüne Git
Tecnichal data Features Module Gateway Fieldbus, industrial network CANopen Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer) Specialty Protective coating for more challenging ambient conditions (e.g., resistance to sulfur)., Special device without terminal strip Interfaces Fieldbus, industrial network CANopen Data transmission rate ≤ 1,000 kbit/s Connection type 1 x female connector, Open Style, 5-pin Electrical data Protection class III (EN 61140) Voltage supply Via FLEXBUS+ Internal power consumption ≤ 1.6 W Mechanical data Dimensions (W x H x D) 22.5 mm x 96.5 mm x 131 mm Weight 150 g (± 10 %) Ambient data Enclosure rating IP20 (EN 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +70 °C Air humidity ≤ 95 %, Non-condensing Single gas resistance (sulfur dioxide) 25 ppm, 21 days, 25 °C (IEC 60068-2-42 – Kc) Mixed gas resistance 100 ppb – H2S 2000 ppb – NO2 100 ppb – CI2 2,000 ppb – SO2, 21 days, 30 °C (IEC 60068-2-60 Ke) Classifications ECLASS 5.0 27243001 ECLASS 5.1.4 27243101 ECLASS 6.0 27243101 ECLASS 6.2 27243101 ECLASS 7.0 27243101 ECLASS 8.0 27243101 ECLASS 8.1 27243101 ECLASS 9.0 27243101 ECLASS 10.0 27243101 ECLASS 11.0 27243101 ECLASS 12.0 27243101 ETIM 5.0 EC001449 ETIM 6.0 EC001449 ETIM 7.0 EC001449 ETIM 8.0 EC001449 UNSPSC 16.0901 32151705
